Smart renovation of an old building
Something new from something old – a kitchen makeover can be implemented fast and smart in a few steps, thanks to JUNG HOME.
The old switch point B can be replaced with a JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs 2. Then a JUNG HOME push-button 2-gang, battery-powered 1 can be added. In this way, a very small installation space can be optimally used.

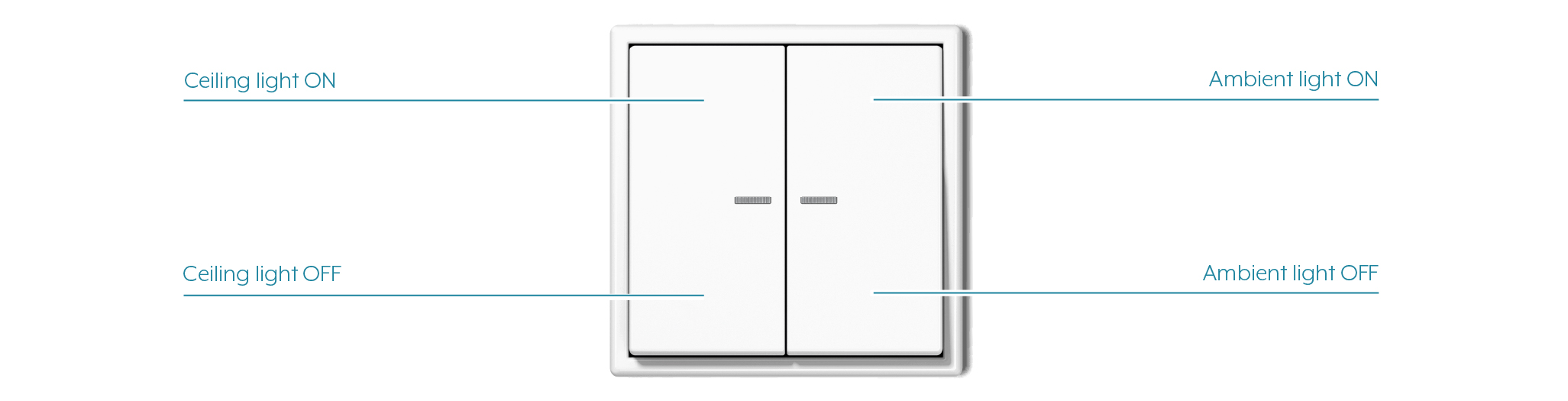

If in addition the conventional socket A is replaced with a JUNG HOME SCHUKO® socket 3, the complete room lighting – from the cupboard lighting to the ceiling luminaire – can be controlled conveniently with the JUNG HOME push-button 2-gang, battery-powered 3.
Item | Device | Ref.-no. |
|---|---|---|
1 | JUNG HOME push-button 2-gang battery-powered | BT A 1002BT A 1002 |
2 | JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs | BT PD 1B2U |
3 | BT..1521S.. | |
A | Conventional socket |
|
B | Old switch point |
|
You can find out how to adapt the operating concept in the JUNG HOME app in the Select operating concept chapter.
