Connection and functions

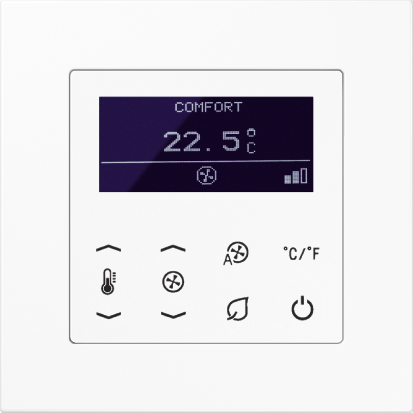

Room thermostat fan coil, 2-pipe

With the JUNG room thermostat fan coil, 2-pipe, switch and operate the electric fan coil unit with electrothermally operated heating and cooling valve. In addition you can measure and regulate the room temperature.

Mounting is on a wall box with dimensions according to DIN 49073.

  • 5 adjustable temperature profiles
  • 8 capacitive sensor buttons
  • Connection of 2-pipe fan coil unit possible
  • Connection of a fan coil unit with up to 3 fan levels
  • Works for heating or cooling
  • Duration of the display illumination up to 120 seconds
  • Display for displaying the actual temperature (°C and °F), fan level, operating mode/profile
  • Display brightness and contrast adjustable
  • Internal temperature sensor
  • Menu levels can be locked
  • Satellite input for connecting, for example, a key card holder
  • Room thermostat function
  • Power supply: power supply TRD-NT 2302
  • Preselection of the current energy level with 5 temperature profiles for use in hotels or similar systems

You can find more information for the different ranges here:

Room thermostat fan coil, 4-pipe

The JUNG fan coil room thermostat ensures the temperature needed in the hotel room. In the switch design and with a high-quality, real glass front, the control fits harmoniously into the interior. Clear information and unambiguous symbols make it easy for the guests to select the appropriate climate mode for their own comfort. The "Eco" mode, one of four operating modes, meets the demands for more energy efficiency. A special feature: the display is darkened in the idle state so that the sleep of the guest is not disturbed. JUNG fan coil regulators are available for fan coil units with 2 or 4-pipe systems.

  • 5 adjustable temperature profiles
  • 8 capacitive sensor buttons
  • Connection of 2-pipe fan coil unit possible
  • Connection of 4-pipe fan coil unit possible
  • Works for heating and/or cooling
  • Internal temperature sensor
  • Satellite input for connecting, for example, a key card holder
  • Power supply: power supply TRD-NT 2304

You can find more information for the different ranges here:

KNX room thermostat fan coil

The device serves electrical fan coil units in KNX systems. The functions
of a KNX bus coupling unit, a room thermostat and a display device
are combined in only one KNX subscriber. With this device, the room temperature
can be controlled centrally.
The device has 8 sensor buttons. With the sensor buttons, the integrated
room thermostat can be operated. The room thermostat function can be
configured in the ETS.
The device can determine a room temperature on the device. The room temperature measurement
can be carried out with the internal sensor or optionally with
an external sensor. A combined temperature recording (internal and ex-
ternal sensors) can also be configured.

  • 5 adjustable temperature profiles
  • 8 capacitive sensor buttons
  • Connection of 2-pipe fan coil unit possible
  • Connection of 4-pipe fan coil unit possible
  • Works for heating and/or cooling
  • Operating as room thermostat satellite unit
  • External temperature sensor can be evaluated
  • Integrated bus coupling unit
  • Internal temperature sensor
  • Satellite input for connecting, for example, a key card holder
  • Power supply: KNX system 21 ... 32 V
  • Optionally 4 operating modes can be set according to the KNX standard

You can find more information for the different ranges here:
