Expansion inserts

Satellite insert 2-wire

The satellite unit 2-wire is used for satellite operation with the control button.

  • 230 V AC ~, 50/60 Hz
  • Connection: screw terminals
  • Covers: .. 1700 ..
  • Satellite operation with control button
  • Stand-by power: -20 ... +45 °C

You can find more information here: qr.jung.de/ean/4011377166943

Satellite insert 3-wire

The satellite insert 3-wire provides you with many different functions depending on system insert and cover on the main unit. In total, the satellite unit has exactly as many functions as those of the cover placed on the main unit.

Operation is with JUNG HOME covers or also with the covers from LB Management.

The satellite insert 3-wire is mounted in wall boxes according to DIN 49073.

  • 230 V AC ~, 50/60 Hz
  • Connection: screw terminals
  • Covers: .. 17180 .. / .. 17280 .. / .. 17181 .. / .. 17281 .. / .. DWPM 17360 ..
  • Extension of the detection range of movement and presence detectors
  • Stand-by power: -20 ... +45 °C
  • Central control of multiple main units

You can find more information here: qr.jung.de/ean/4011377166950

Power DALI push-button controller TW

Using the 1-channel power DALI push-button controller TW system insert, you control luminaires with DALI interface and DALI ballasts.

Operation is with the push-button, movement and presence detector.

The power DALI push-button controller TW can be installed in a commercially available wall box (e.g. Kaiser 1055-02) according to DIN 49073.

  • 230 V AC ~, 50/60 Hz
  • Number of DALI devices: 18
  • Number of control units in parallel: 4
  • Covers: .. 17180 .. / .. 17280 .. / .. 17181 .. / .. 17281 .. / .. DWPM 17360 ..
  • Output current: max. 36 mA
  • DALI power supply for a maximum of 18 subscribers
  • Switching on with the last set brightness/ colour temperature or saved brightness/colour temperature
  • Colour temperature setting: 2000 ... 10000 K
  • Short-circuit current: max. 60 mA
  • Power consumption: max. 2.8 W
  • Rated voltage DALI: DC 16 V
  • Parallel switching of up to 4 DALI control units with the option of supplying up to 72 DALI devices
  • Storing of minimum brightness, coldest and warmest colour temperature
  • Stand-by power: -5 ... +45 °C
  • Test operation for function testing

You can find more information here: qr.jung.de/ean/4011377166936

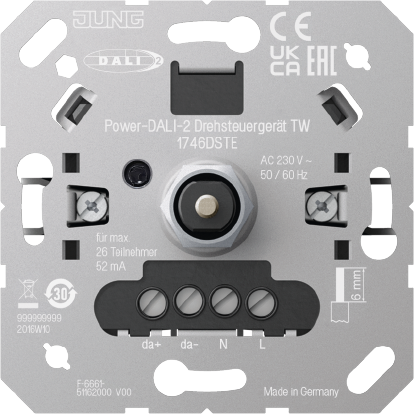

Power DALI-2 rotary controller TW 1746 DSTE

With the Power DALI-2 rotary controller TW 1746 DSTE you can set the brightness for luminaires with DALI interface.

Setting the colour temperature for luminaires is carried out with DALI Device Type 8 for Tunable White in accordance with IEC 62386-209.

The power DALI-2 rotary controller TW 1746 DSTE can be installed in a commercially available wall box (e.g. Kaiser 1055-02) according to DIN 49073.

  • DALI-2 application controller with integrated bus power supply for up to 26 DALI devices
  • DALI power supply short-circuit proof
  • LED for device localisation
  • Multi-master capable
    • Multiple controllers can be installed as application controller in a DALI system
  • Parallel switching of up to 4 DALI-2 rotary controllers with the option of supplying up to 104 DALI devices
  • Save the basic brightness and a switch-on brightness
  • Saving colour temperature limit values
  • Certified to IEC 62386-101 and -103 (single-master)

Further product characteristics by programming with DALI-2 control commands

  • Suitable as rotary controller (input device) for connection to central DALI-2 controls
  • Can be used to control a DALI-2 group
  • Supports four DALI-2 instances for adapting to central control
  • Cyclical transmission of control commands to DALI operating devices can be activated

You can find more information here: qr.jung.de/ean/4011377322660

Pulse insert

The pulse insert can only be used in connection with the staircase timer reference number 1208REG. The pulse insert enables the automatic switching of light.

  • 230 V AC ~, 50 Hz
  • Connection: screw terminals
  • Covers: .. 17180 .. / .. 17280 .. / .. 17181 .. / .. 17281 .. / .. DWPM 17360 ..
  • Automatic switching
  • Operation in 3 or 4-conductor switching
  • Insert designed in 2-wire technology
  • Pulse duration approx. 60 ms
  • Pulse interval approx 8 s
  • Power consumption: 0.25 ... 0.45 W
  • Rated voltage DALI: DC 16 V
  • Only to be used in connection with the staircase timer reference number 1208 REG
  • Stand-by power: -5 ... +45 °C

You can find more information here: qr.jung.de/ean/4011377166967
