Inserts

The inserts for the corridor units are mounted in a DIN 49073 appliance box.

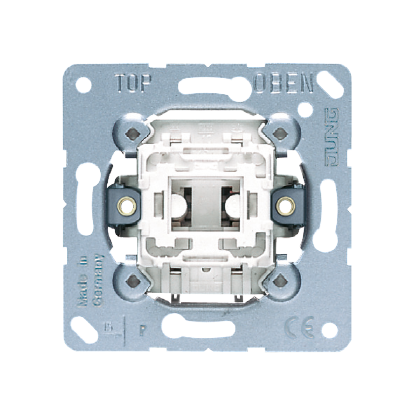

Hotel push-button "Do not disturb" and "Bell"

The hotel push-button "Do not disturb" and "Bell" is 1-pole, 1-way NO contact with separate signal contacts for lamps. The bell can be activated with the push-button. The push-button is mounted in a DIN 49073 appliance box.

  • Version: 1-pole 1-way NO contact with separate signal contacts for lamps
  • The corridor unit signals the switching state of the room unit
  • Illumination possible
    • Using red LED luminaires with high, low and standard brightness
  • Spring terminals for rigid wires up to 2.5 mm²
  • Screw fixing, without claws
  • The push-button serves to activate the bell (with optional relay when selection "Do not disturb" is deactivated)
  • Connection terminals according to DIN VDE 0632 (EN 60669)

You can find more information about the different versions here:

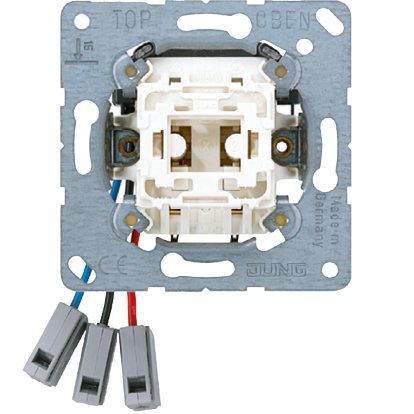

Hotel push-button "Do not disturb" (531 KO5 EU M 24 / 230 (HI / LO))

The "Do not disturb" hotel push-button is a 1-pole 1-way NO contact. The bell can be activated with the push-button. The push-button is mounted in a DIN 49073 appliance box.

  • Version: 1-pole 1-way NO contact
  • The corridor unit signals the switching state of the room unit
  • Illumination possible
    • Using red and green LED luminaires with high, low and standard brightness
  • Spring terminals for rigid wires up to 2.5 mm²
  • Screw fixing, without claws
  • The push-button serves to activate the bell (with optional relay when selection "Do not disturb" is deactivated)
  • Connection terminals according to DIN VDE 0632 (EN 60669)

You can find more information about the different versions here:

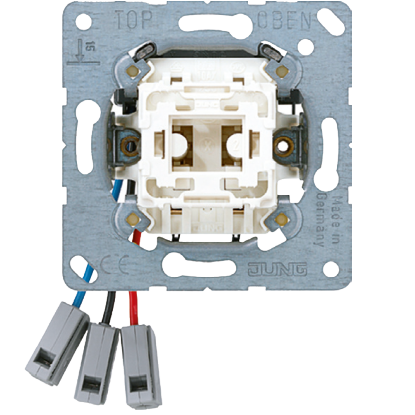

Hotel push-button "Do not disturb" (531 KO6 EU M 24)

The "Do not disturb" hotel push-button is a 1-pole 1-way NO contact. The bell can be activated with the push-button. The push-button is mounted in a DIN 49073 appliance box.

  • Version: 1-pole 1-way NO contact
  • The corridor unit signals the switching state of the room unit
  • Illumination possible
    • Using red and green LED luminaires with high, low and standard brightness
  • Spring terminals for rigid wires up to 2.5 mm²
  • Screw fixing, without claws
  • The push-button serves to activate the bell (with optional relay when selection "Do not disturb" is deactivated)
  • Connection terminals according to DIN VDE 0632 (EN 60669)

You can find more information here: qr.jung.de/ean/4011377166226
