Overview of international sockets

British Standard 13 A

JUNG offers components meeting the British standard for typical BS-wall sockets. The modular system enables the simple installation of centre plate, socket and design frame in a 1-gang or 2-gang version. High-quality materials in the LS ranges or the full-surface version ensure an elegant appearance.

  • Number of poles / earth cables: 2-pole + E
  • Insert: 3521 EINS BS 1363
  • Increased contact protection
  • Screw terminals for rigid and flexible wires up to 4 mm² in accordance with BS 1363-1
  • Voltage: 250 V~
  • Current: 13 A

You can find more information for the different ranges here:

British Standard 13 A, switchable without indicator light

Switched British Standard socket 13 A with 3171 EINS insert, in an LS 990 frame in WW.

  • Number of poles / earth cables: 2-pole + earth, with switch
  • Insert: BS 3171 EINS
  • Increased contact protection
  • Switchable without indicator light
  • Screw terminals for rigid and flexible wires up to 4 mm² in accordance with BS 1363-1
  • Voltage: 250 V~
  • Current: 13 A

You can find more information for the different ranges here:

British Standard 13 A, switchable with indicator light

Switched British Standard socket 13 A with indicator light, with 3171 KO EINS insert in an LS 990 frame in WW.

  • Number of poles/ earth cables: 2-pole + earth, with switch with indicator light, 2-pole
  • Insert: 3171 KO EINS BS 1363
  • Increased contact protection
  • Switchable with indicator light
  • Screw terminals for rigid and flexible wires up to 4 mm² in accordance with BS 1363-1
  • Voltage: 250 V~
  • Current: 13 A

You can find more information for the different ranges here:

British Standard 5 A

British Standard socket 5 A with insert 3171-5 EINS in an LS 990 frame in WW.

  • Number of poles / earth cables: 2-pole + E
  • Insert: 3171-5 EINS BS 546
  • Increased contact protection
  • Switchable without indicator light
  • Screw terminals for rigid and flexible wires up to 4 mm² in accordance with BS 1363-1
  • Voltage: 250 V~
  • Current: 5 A

You can find more information for the different ranges here:

https://www.jung-group.com/en-DE/Catalogue/Sockets/

British Standard 15 A

Switchable British Standard socket 15 A with insert 2171-15 in an LS 990 frame in WW.

  • Number of poles/ earth cables: 2-pole + earth, with switch with indicator light, 2-pole
  • Permanently ausgeklappt
  • Insert: BS 2171-15 EINS
  • Increased contact protection
  • Screw terminals for rigid and flexible wires up to 4 mm²
  • Voltage: 250 V~
  • Current: 15 A

You can find more information for the LS range here:

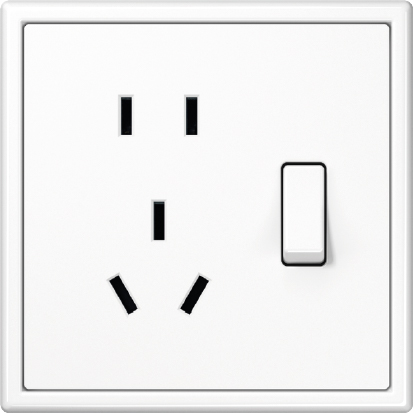

Chinese Standard

Switched socket Chinese standard for up to 10 A. Insert 3521-5 CN EINS in an LS 990 frame in WW.

  • Number of poles/ earth cables: 2-pole without earth for flat and round pins;
    2-pole + earth only flat pins
  • Insert: 3521-5 CN EINS
  • Increased contact protection
  • Screw terminals for rigid and flexible wires up to 4 mm²
  • Voltage: 250 V~
  • Current: 10 A

You can find more information for the LS range here:

Switched socket, type G + I

Switched socket type G + I, for up to 13 A. Insert 4171 GI SW EINS in an LS 990 frame in WW.

  • Number of poles / earth cables: 2-pole + earth, with switch
  • Insert: 4171 GI SW EINS
  • Increased contact protection
  • Screw terminals for rigid and flexible wires up to 4 mm² in accordance with BS 1363-1
  • Voltage: 250 V~
  • Current: 13 A

You can find more information here: qr.jung.de/ean/4011377176461

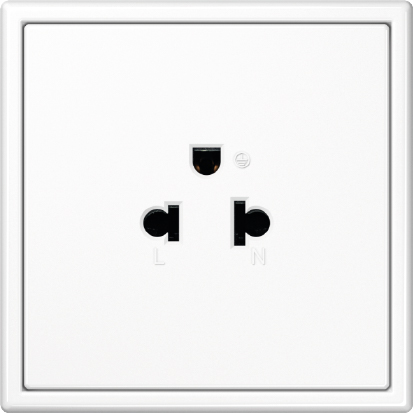

Indian Standard

Socket in accordance with Indian Standard, for up to 16 A. Insert 521 IN-EINS in an LS 990 frame in WW.

  • Number of poles / earth cables: 2-pole + E
  • Insert: 521 IN-EINS
  • Increased contact protection
  • Voltage: 250 V~
  • Current: 16 A

You can find more information for the different ranges here:

https://www.jung-group.com/en-DE/Catalogue/Sockets

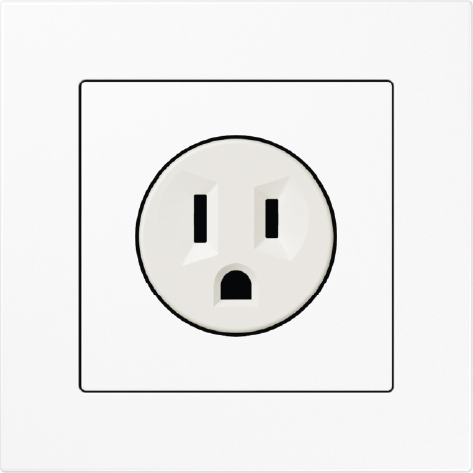

US NEMA system

Socket in accordance with US NEMA standard, up to 20 A, 125 V, in an LS990 frame in WW.

  • Number of poles / earth cables: 2-pole + E
  • Increased contact protection
  • Screw terminals for rigid and flexible cores up to 4 mm² in accordance with US Nema
  • Voltage: 125 V~; 5-15 R
  • Current: 15 A

You can find more information here:

French/Belgian system

Socket in accordance with French/Belgian system, up to 16 A. Insert 1520 F EINS or 1521 F EINS in an LS990 frame in WW.

  • Number of poles / earth cables: 2-pole + E
  • Insert: 1520 F EINS and 1521 F EINS
  • Increased contact protection
  • Screwless terminals for rigid and untreated flexible wires up to 2.5 mm²: version with screw terminals on request = NFC
  • Voltage: 250 V~
  • Current: 16 A

You can find more information for the different ranges here:

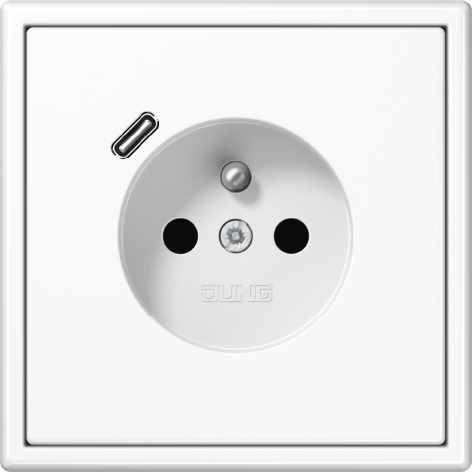

French/Belgian system with USB charger

Socket in accordance with French/Belgian system with USB charger, up to 16 A. Mounting in Montage in appliance box with dimensions according to DIN 49073.

  • 1 USB port type C
  • Number of poles / earth cables: 2-pole + E
  • CEE 7/5
  • Screwless terminals for rigid and untreated flexible wires up to 2.5 mm²
  • Enhanced contact protection (Safety Plus)
  • Quick charge function (JUNG Quick Charge®)
  • Voltage: 250 V~
  • Current: 16 A
  • Connection terminals according to DIN VDE 0620

You can find more information for the different ranges here:

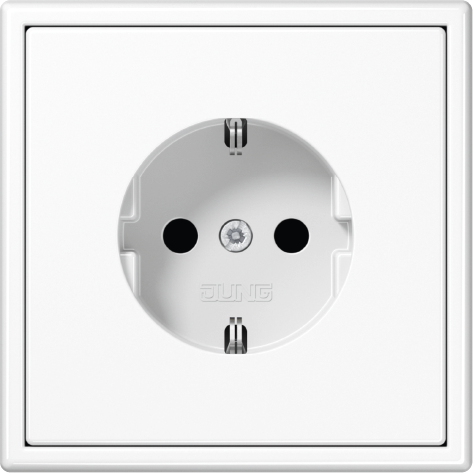

SCHUKO® socket

JUNG offers standardised sockets on the international markets. Thanks to the JUNG modular system, numerous international connection types are available. They are available in different materials and colours.

Functional, safe and versatile: inside our SCHUKO® sockets, high-quality contact springs ensure more safety. SCHUKO® socket standard, up to 16 A, 250 V, in an LS990 frame in WW.

  • Insert: .. 1520 .. and .. 1521 ..
  • Enhanced contact protection is possible
  • Screwless terminals for rigid and untreated flexible wires up to 2.5 mm² (.. 1520 ..)
    Versions with screw terminals available (.. 1521 ..)
  • Voltage: 250 V~
  • Current: 16 A

You can find more information for the different ranges here:

SCHUKO® socket Safety

JUNG offers standardised sockets on the international markets. Thanks to the JUNG modular system, numerous international connection types are available. They are available in different materials and colours.

Functional, safe and versatile: inside our SCHUKO® sockets, high-quality contact springs ensure more safety. In addition, the SCHUKO® socket Safety is equipped with enhanced contact protection (shutter).

  • Screwless terminals for rigid and untreated flexible wires up to 2.5 mm² (.. 1520 ..)
    Versions with screw terminals available (.. 1521 ..)
  • Enhanced contact protection (Safety Plus)
  • Voltage: 250 V~
  • Current: 16 A
  • Connection terminals according to DIN VDE 0620

You can find more information for the different ranges here:

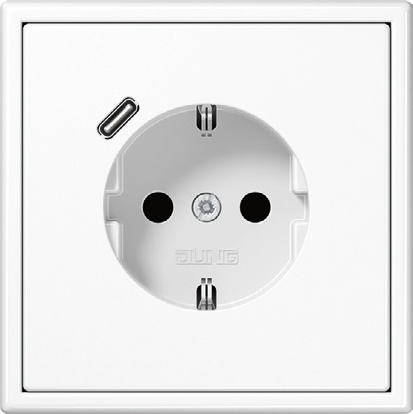

JUNG SCHUKO® standard with USB port

The JUNG SCHUKO® sockets are also available with integrated USB-C ports.

JUNG SCHUKO® socket with USB ports, 16 A, 250 V, in an LS990 frame in WW.

  • Insert: .. 1520-15CA ..
  • Enhanced contact protection is possible
  • Screwless terminals for rigid and untreated flexible wires up to 2.5 mm²
  • With USB charger (1× type C)
  • SAFETY+
  • Voltage: 250 V~
  • Current: 16 A

You can find more information for the different ranges here:

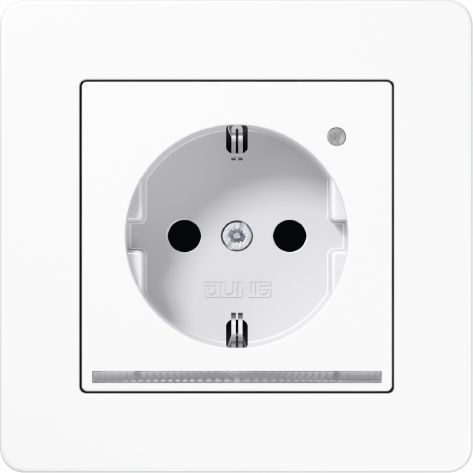

SCHUKO® socket with LED floor pilot light

JUNG offers standardised sockets on the international markets. Thanks to the JUNG modular system, numerous international connection types are available. They are available in different materials and colours.

Functional, safe and versatile: inside our SCHUKO® sockets, high-quality contact springs ensure more safety. In addition, the SCHUKO® socket with LED floor pilot light is equipped with an enhanced contact protection (shutter) and has an LED light for orientation.

  • Screwless terminals for rigid and untreated flexible wires up to 2.5 mm² (.. 1520 ..)
  • Enhanced contact protection (Safety Plus)
  • Integrated brightness sensor
  • LED floor pilot light
  • Power consumption standby / operation: 0.3 / 0.5 kW
  • Voltage: 250 V~
  • Current: 16 A
  • Supporting frame, claws and claw screws are integrated into the earth protection using an earthing rail
  • Connection terminals according to DIN VDE 0620

You can find more information for the different ranges here:

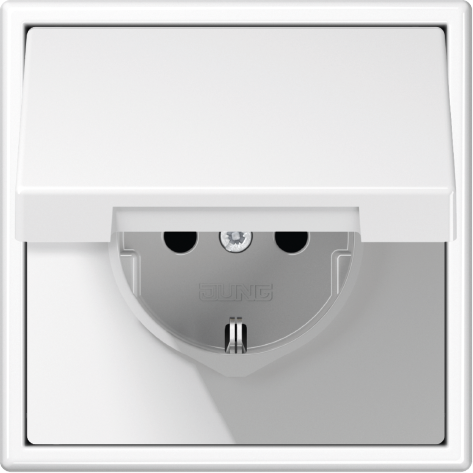

SCHUKO® socket with hinged lid

JUNG offers standardised sockets on the international markets. Thanks to the JUNG modular system, numerous international connection types are available. They are available in different materials and colours.

Functional, safe and versatile: inside our SCHUKO® sockets, high-quality contact springs ensure more safety. In addition, the SCHUKO® socket has a hinged lid.

  • Screwless terminals for rigid and untreated flexible wires up to 2.5 mm² (.. 1520 ..)
  • Power consumption standby / operation: 0.3 / 0.5 kW
  • With hinged lid
  • Inscription field optionally present
  • Voltage: 250 V~
  • Current: 16 A
  • Supporting frame, claws and claw screws are integrated into the earth protection using an earthing rail
  • Connection terminals according to DIN VDE 0620

You can find more information on all different ranges and versions of this socket here:

https://www.jung-group.com/en-DE/Catalogue/Sockets/SCHUKO-Sockets-Type-F/Products/?properties=1f08eecaf8cd691e7f4c3a512d1f353a&refererId=1703ebb6aa9646feae5f69f106cc0289

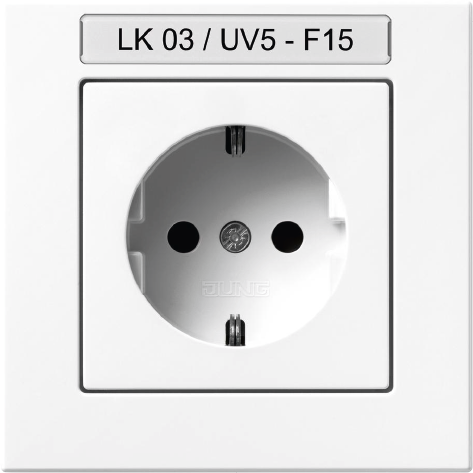

SCHUKO® socket with inscription field

JUNG offers standardised sockets on the international markets. Thanks to the JUNG modular system, numerous international connection types are available. They are available in different materials and colours.

Functional, safe and versatile: inside our SCHUKO® sockets, high-quality contact springs ensure more safety. In addition, the SCHUKO® socket has an inscription field in the upper area.

  • Screwless terminals for rigid and untreated flexible wires up to 2.5 mm² (.. 1520 ..)
  • With (integrated) inscription field 9 × 58 mm
  • Voltage: 250 V~
  • Current: 16 A
  • Supporting frame, claws and claw screws are integrated into the earth protection using an earthing rail
  • Connection terminals according to DIN VDE 0620

You can find more information on all different ranges and versions of this socket here:

https://www.jung-group.com/en-DE/Catalogue/Sockets/SCHUKO-Sockets-Type-F/Products/?properties=80f0c67af745817c2d3fbb7df652220c%7Ce843b09f536e8142121db74105c5a288&refererId=d575143ebe6841adb89fcd7ffa23cbc4

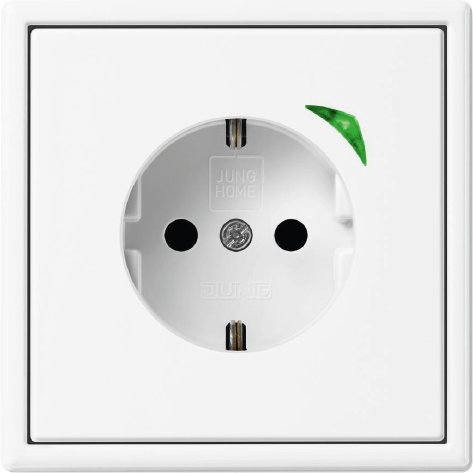

JUNG HOME socket

The JUNG HOME socket offers the maximum range of functions, e.g. the integrated switch actuator or the time program.

The JUNG HOME socket can be installed in a commercially available wall box (e.g. Kaiser 1055-02) according to DIN 49073.

  • Activate/deactivate automatic functions using the JUNG HOME app
  • Up to 16 time programs
  • Bluetooth® MESH for fully encrypted wireless communication and repeater function
  • Integration of the load into areas (groups), central functions and scenes
  • Commissioning and operation using the JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth® MESH
  • Integrated 16A switch actuator
  • Multi-coloured status indicator with optional night mode
  • Disabling of local operation
  • Button for switching
  • Can be updated using JUNG HOME app
  • Time synchronisation and summer and winter time changes take place automatically via the JUNG HOME app with the times from an Internet connection
  • Disable and forced operation: continuous ON/OFF or ON/OFF for fixed time
  • Time programs with sunrise or sunset (astro timer)

You can find more information on all different ranges and versions of this socket here:

JUNG HOME socket Energy

The JUNG HOME socket Energy offers the maximum range of functions, from integrated switch actuator and time program to energy measurement. In addition, the master-slave function ensures that other devices connected to a second socket linked wirelessly are activated.

The JUNG HOME socket Energy can be installed in a commercially available wall box (e.g. Kaiser 1055-02) according to DIN 49073.

  • Recording of the energy flow over the previous 24 hours and the previous 31 days (charting)
  • Activate/deactivate automatic functions using the JUNG HOME app
  • Operating hours counter, energy measurement period
  • Up to 16 time programs
  • Bluetooth® MESH for fully encrypted wireless communication and repeater function
  • Integration of the load into areas (groups), central functions and scenes
  • Commissioning and operation using the JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth® MESH
  • Integrated 16A switch actuator
  • Power measurement from 0.1 to 3680 watt and energy measurement (kWh)
  • master/slave function (switches on a wirelessly linked electrical load depending on the electrical load connected)
  • Multi-coloured status indicator with optional night mode
  • Power Save function (switches off standby electrical loads)
  • Safety cut-off
  • Disable and forced operation: continuous ON/OFF or ON/OFF for fixed time▪Time programs with sunrise and sunset (astro timer)
  • Disabling of local operation
  • Button for switching
  • Can be updated using JUNG HOME app
  • Time synchronisation and summer and winter time changes take place automatically via the JUNG HOME app with the times from an Internet connection

You can find more information on all different ranges and versions of this socket here:

Swiss system type 13

With the Swiss system type 13 socket, it is a single socket of type 13 according to the Swiss standard.

  • Number of poles / earth cables: 2-pole + E
  • 1-gang socket
  • Spring terminals for rigid wires up to 2.5 mm²
  • No increased contact protection (shutter)
  • Voltage: 250 V~
  • Socket to Swiss system
  • Current: 13 A

You can find more information here:

Shaver socket

The shaver socket is used with the socket insert SO 7522 EINS.

  • Number of poles / earth cables: 2-pole + E
  • Increased contact protection
  • Screw terminals for rigid and flexible wires up to 4 mm²
  • Voltage: input: 230 V~; output 115 V~ and 230 V~
  • Current: 20 VA

You can find more information here: qr.jung.de/ean/4011377070059

EURO/US according to NOM

Socket insert EURO-US according to NOM. Centre plate for EURO-US socket in the A and LS ranges. For plug types A, B and C according to IEC standard. 15 A, 125 V, 2-pole and PE (protection earth). Meets NOM standard 003-SCFI-2014.

  • Number of poles / earth cables: 2-pole + E
  • Increased contact protection
  • For plug types A, B and C
  • Screw terminals for rigid and flexible wires up to 4 mm² according to NOM
  • Voltage: 125 V~
  • Current: 15 A

You can find more information here:

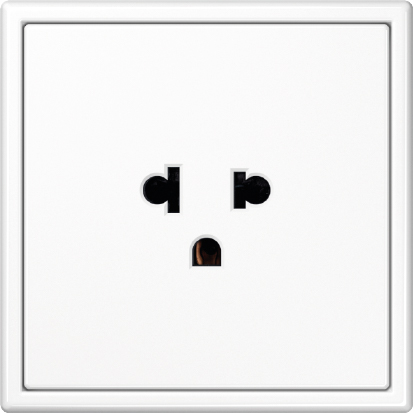

Thailand TIS socket

Thailand TIS socket, type A, B, O, meets Thai standard TIS 166-2549, 16 A, 250 V, 2 pole + PE (protection earth) cover for A and LS ranges.

  • Number of poles / earth cables: 2-pole + E
  • Increased contact protection
  • For plug types A, B and O
  • Screw terminals for rigid and flexible wires up to 4 mm² according to TIS 166-2549
  • Voltage: 250 V~
  • Current: 16 A

You can find more information here:
