Installation and settings

Connecting and mounting JUNG HOME blinds actuator 1-gang mini with 2 binary inputs

Note the following for the mounting:

Proceed as follows for mounting:

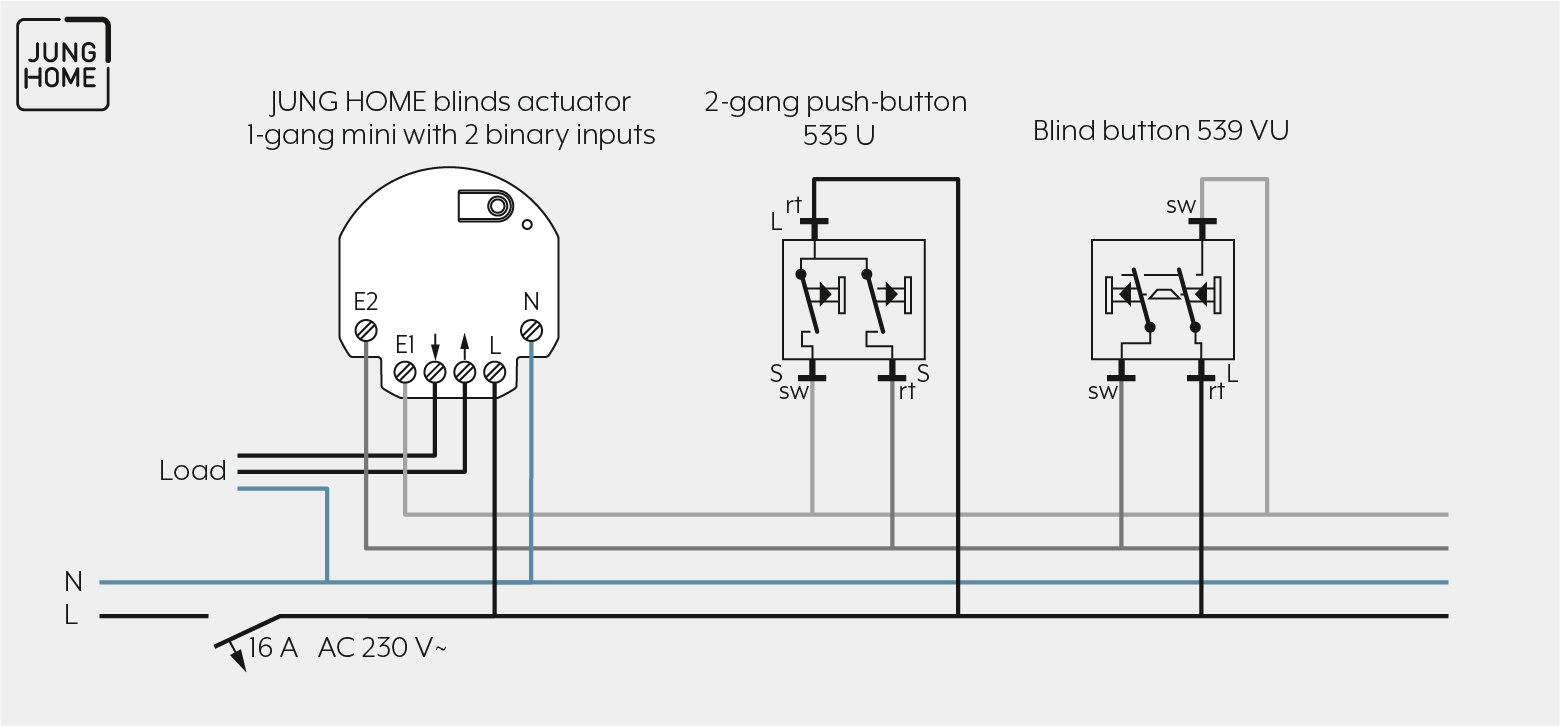

  1. Connect the JUNG HOME blinds actuator 1-gang mini with 2 binary inputs in accordance with the wiring diagram.
    Note the clampable conductor cross-sections. Illuminated push-buttons must have a separate terminal for N conductor in addition.
  2. Position the JUNG HOME blinds actuator 1-gang mini with 2 binary inputs in the wall box such that the Prog button and the status LED are visible.
  3. Switch on the mains voltage.
  4. Briefly press the Prog button to move the blind/shutter/awning in and out as a test.
  5. Mount the appropriate cover.

CLAMPABLE CONDUCTOR CROSS-SECTION

1 x 0.5 … 2.5 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 5 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 2.5 mm²
2 x 0.5 … 2.5 mm²

Commissioning

For how to commission the JUNG HOME blinds actuator, 1-gang mini with 2 binary inputs using the JUNG HOME app, see Chapters "Pair device" and "Configure JUNG HOME mini devices".
