Control variants: individual, group or central control

Individual controller

Every blind or awning can be individually controlled with a blinds insert and a JUNG HOME push-button. For this, no further control components are required. This is an advantage when retrofitting room by room.

By using system inserts and JUNG HOME push-buttons, the individual shading motors can likewise be operated with the JUNG HOME app. If required, the shading can also be provided with timer programs so that the blinds are raised in the morning and lowered again in the evening. This can also be combined with an astro time. That means that the shading is moved depending on sunrise and sunset times. Whether anyone is at home or not.

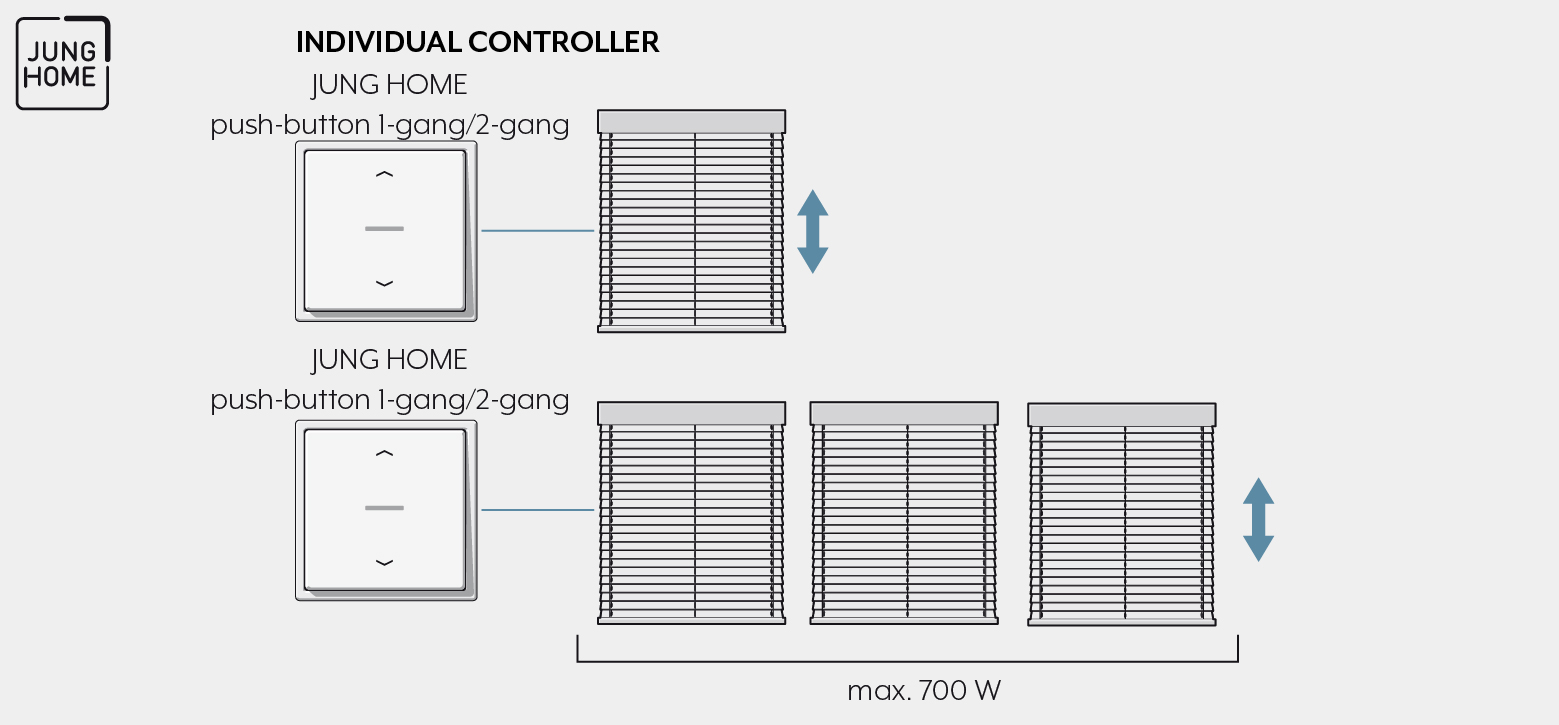

Individual controller

The blinds insert Standard with a JUNG HOME push-button 1-gang/2-gang switches a shading system as a closed system. If multiple motors are connected to a blind insert, the maximum connected load of a total of 700 watts must also be taken into account here. The motors must be suitable for parallel operation. Otherwise, use decoupling relays (ref. no.: TR-S, TR-SUP or TR-SREG).

Group and central control

We use the terms group or central control when multiple blinds or shutters are simultaneously operated with one push-button. Starting with just one JUNG HOME push-button, individual or grouped blinds in one room, on one floor or even in the whole house can be operated at the same time as required.

Simply operate a push-button before going to bed and the blinds close throughout the house (or floor). And in the morning it operates likewise in the other direction.

Operation of the push-button is naturally also possible with the JUNG HOME app.

Group and central control saves installation time and can simply be retrofitted where necessary without having to lay new wiring.

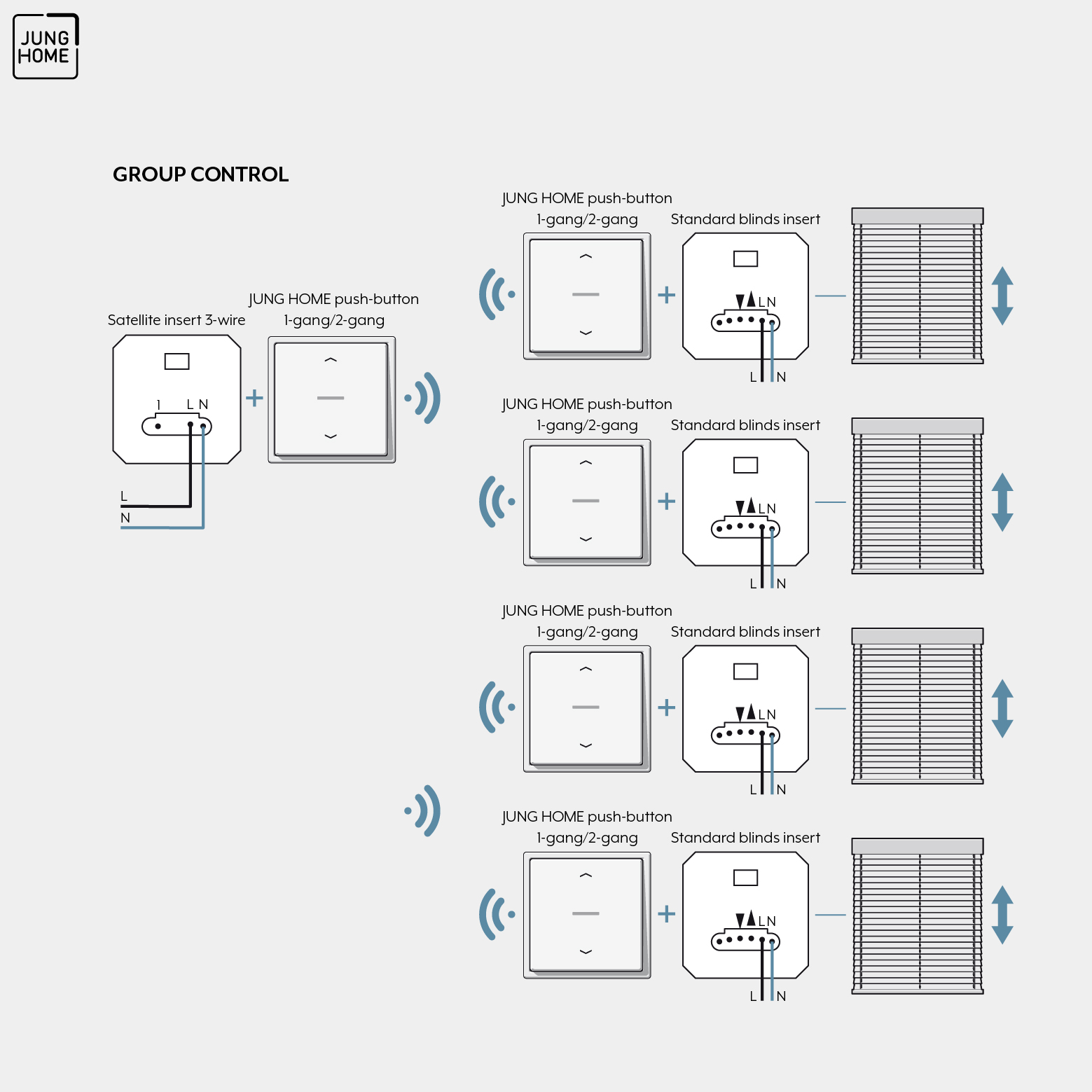

Group control with JUNG HOME (wireless)

If a building or apartment consists of multiple individual controls, it is possible to simply combine the blinds centrally into a group without much installation cost. To do so, every blinds insert on site is provided with a JUNG HOME push-button and a satellite insert 3-wire with a further JUNG HOME push-button at a central position. Linking the various push-buttons is carried out simply with the JUNG HOME app. Every local push-button can also be given an individual timer program. In this way, the blinds also move automatically.

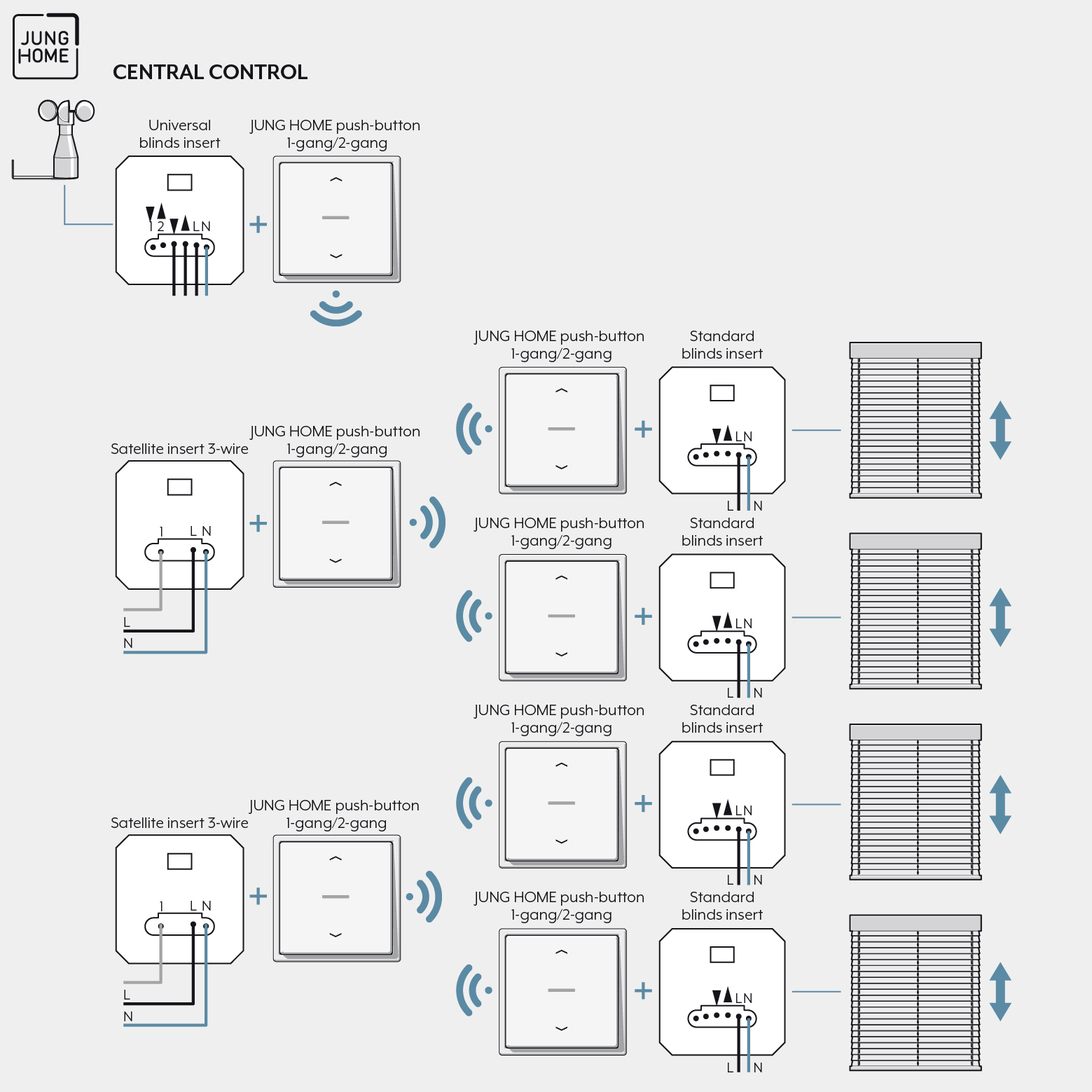

Central control with JUNG HOME (wireless)

In the case of very large systems, for example in office buildings, all blinds can be controlled centrally. The entire system can be globally protected against storms if a wind sensor is connected. A group controller is installed on every floor and the respective master is centralised with a higher level master. The following control possibilities arise: centrally via the master, floor by floor via the group controller and individually locally.

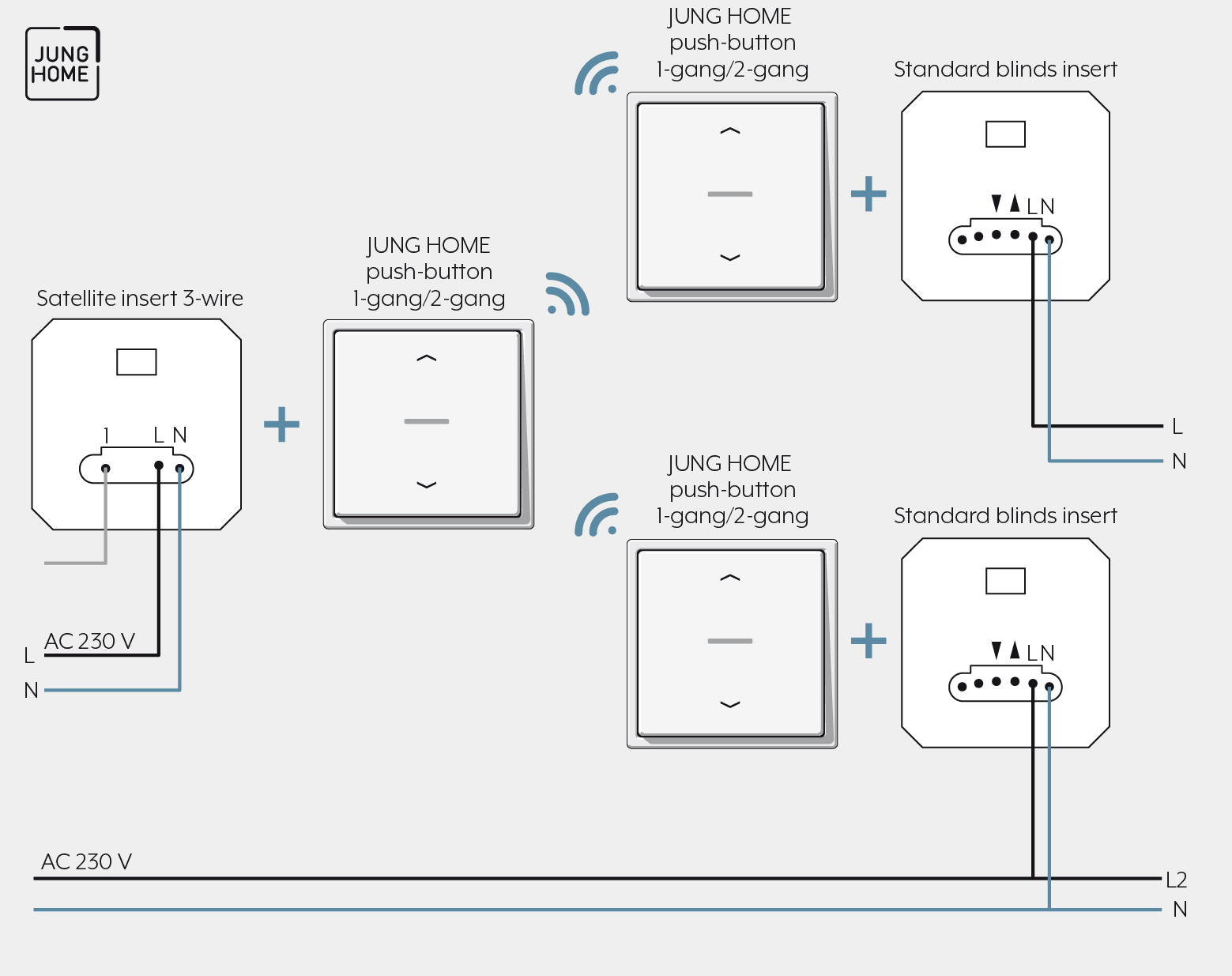

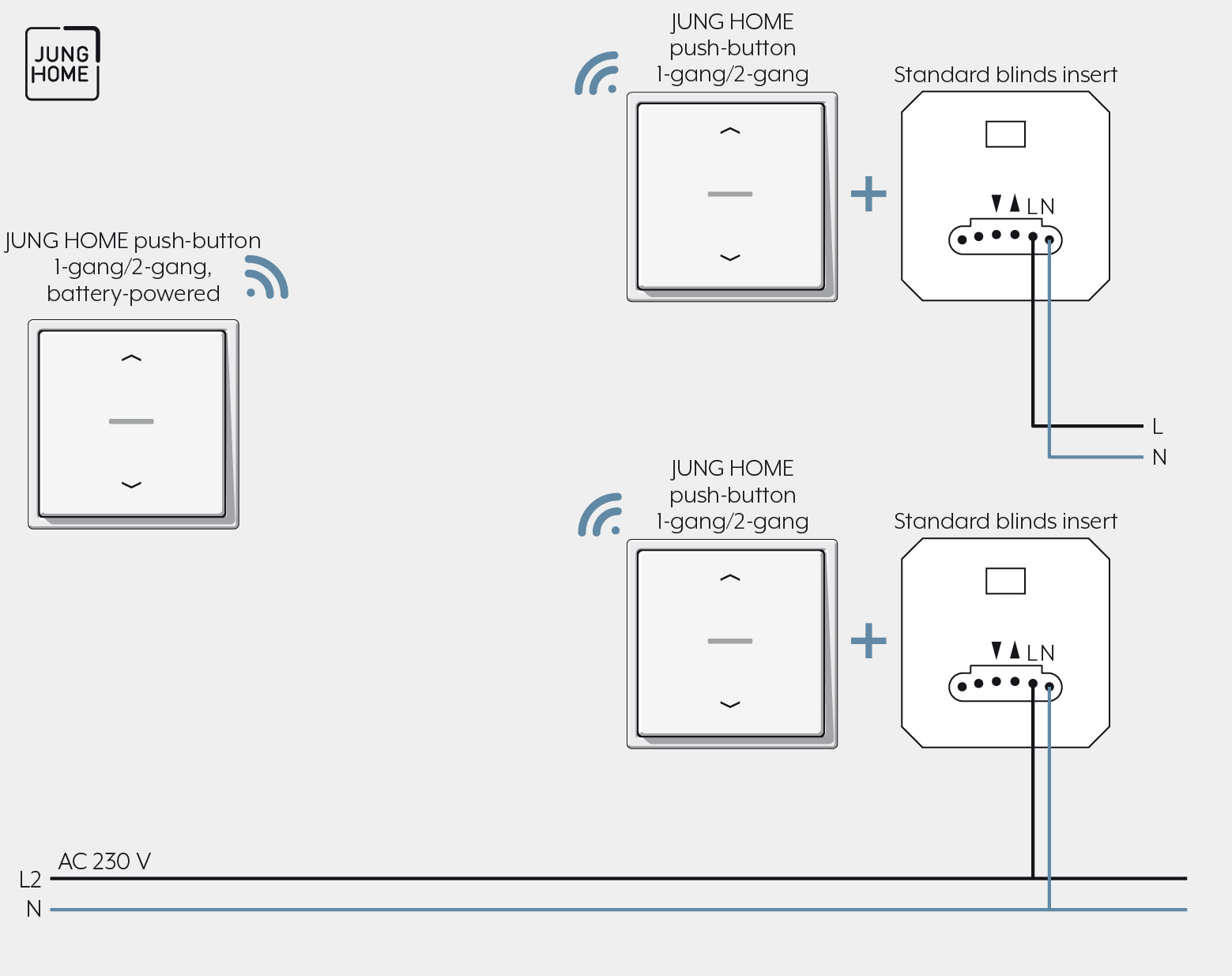

Integrating device in group control

Connect the blind inserts together with each other as follows for group control.

Note

In doing so, the blind inserts can also be present on different phase conductors.

You can find a detailed explanation of how you install the satellite unit for JUNG HOME in Chapter "Connecting a satellite unit".
