JUNG HOME push-button 1-gang/2-gang battery-powered
JUNG HOME push-button 1-gang, battery-powered
The JUNG HOME push-button 1-gang battery-powered enables the operation of wirelessly connected JUNG HOME actuators. No power supply is required for the JUNG HOME push-button 1-gang battery-powered.
The JUNG HOME push-button 1-gang, battery-powered can be screwed onto a conventional wall box (e.g. Kaiser 1055-02) according to DIN 49073 or glued onto a smooth surface.
- Operation of lighting
- Wireless linking with products of the JUNG HOME system
- Top/bottom/full-surface operation
- Configurable operating concept (push-button or rocker function, scenes)
- Free assignment of rocker/push-button to the actuator channels (linked)
- Up to 2 operating channels
- Multi-coloured status display in the push-button with permanently configured night mode (display max. 5 s)
- Status feedback of actuator(s) via status LED
- Trigger disabling function e.g. forced operation
- Local operation can be disabled e.g. child lock
- Reports low battery level
- Commissioning via JUNG HOME app, see Configure the JUNG HOME push-button (... battery-powered)
- Fully encrypted, wireless communication
- Compatible with the Bluetooth® Mesh SIG communication standard
- Mesh repeater function
- "Rattle-free" mounting above or next to the system insert in a multiple frame on the wall without a switch or dimming insert or a 3-wire satellite unit.
- Mounting on a wall box according to EN 60670-1, screw fixing on walls or adhesive fixing on smooth surfaces (e.g. glass panels).

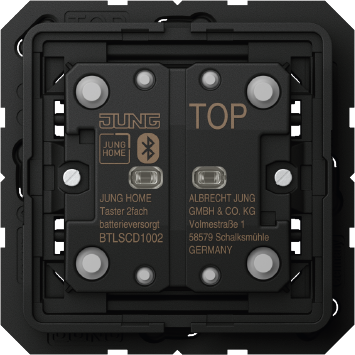

JUNG HOME push-button 2-gang battery-powered
The JUNG HOME push-button 2-gang battery-powered enables the operation of wirelessly connected JUNG HOME actuators. No power supply is required for the JUNG HOME push-button 2-gang battery-powered.
The JUNG HOME push-button 2-gang, battery-powered can be screwed onto a conventional wall box (e.g. Kaiser 1055-02) according to DIN 49073 or glued onto a smooth surface.
- Operation of lighting
- Wireless linking with products of the JUNG HOME system
- Top/bottom/full-surface operation
- Configurable operating concept (push-button or rocker function, scenes)
- Free assignment of rocker/push-button to the actuator channels (linked)
- Up to 4 operating channels
- Multi-coloured status display in the push-button with permanently configured night mode (display max. 5 s)
- Status feedback of actuator(s) via status LED
- Trigger disabling function e.g. forced operation
- Local operation can be disabled e.g. child lock
- Reports low battery level
- Commissioning via JUNG HOME app, see Configure the JUNG HOME push-button (... battery-powered)
- Fully encrypted, wireless communication
- Compatible with the Bluetooth® Mesh SIG communication standard
- Mesh repeater function
- "Rattle-free" mounting above or next to the system insert in a multiple frame on the wall without a switch or dimming insert or a 3-wire satellite unit.
- Mounting on a wall box according to EN 60670-1, screw fixing on walls or adhesive fixing on smooth surfaces (e.g. glass panels).
