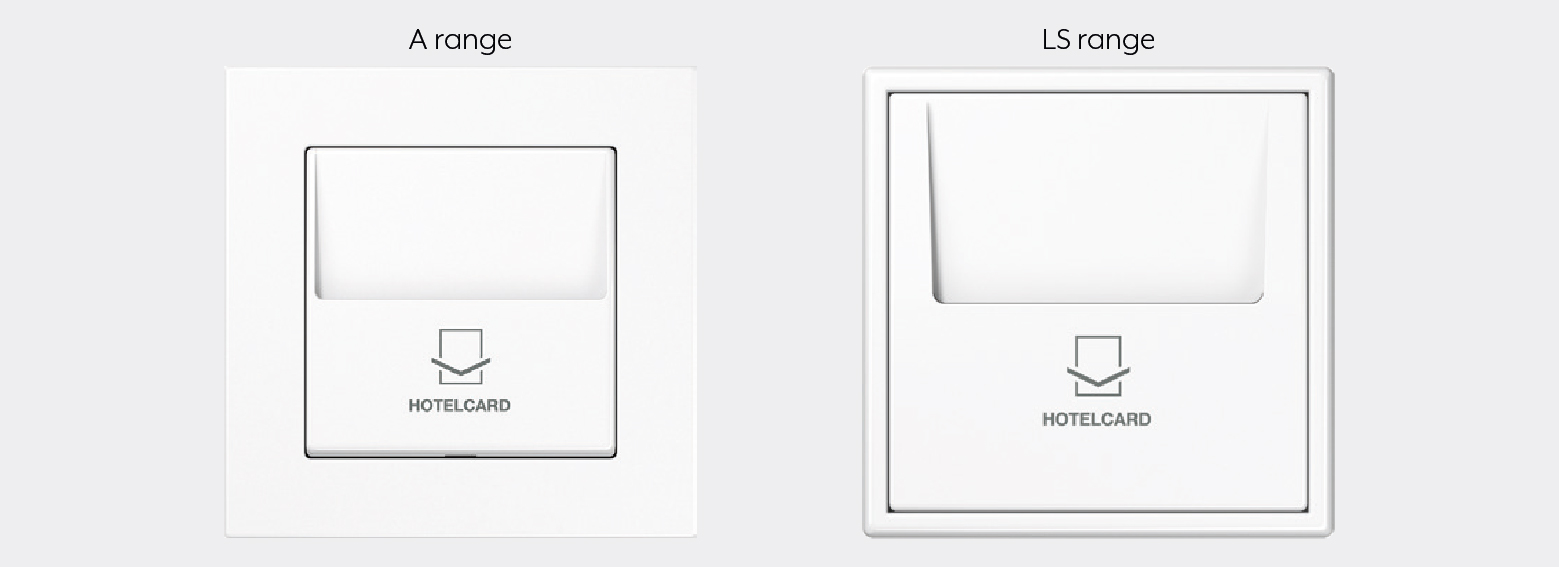

The key card holder centre plate completes, alongside the varied frames from the A, CD, LS, LSdesign and LSplus ranges, the efficient storage system. The key card holder is rounded off with a push-button from the JUNG range. Push-button reference number 533 U with 1-way NC contact/NO contact and additional terminal for N conductor is recommended. The device works as a 1-way NC contact or 1-way NO contact, depending on connection. The separate terminal for N conductor enables the operation of glow, incandescent or LED lamp at the same potential. Then the key card holder is also visible in the dark.

If the pilot light is not to be attached to the same potential, the 1-way NO contact push-button reference number 534 U with a separate contact for indicator light can be used.

Installation note: no plaster compensation is possible. The insert must be mounted flush with the wall. The supporting frame may not have wallpaper applied over it. It is possible to obtain the key card holder with the inscription "key card", without inscription or with an individual inscription. The latter can be printed on the switch or laser-engraved.

Key card holder (without push-button insert)
