Inserts

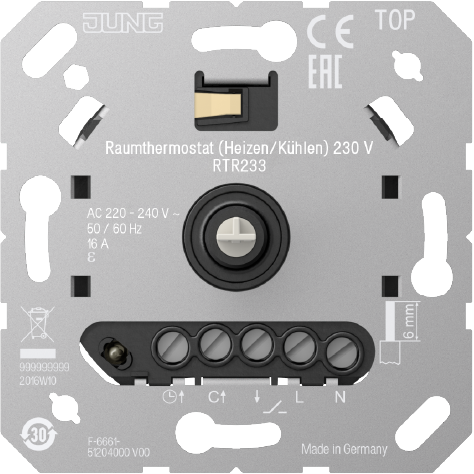

Room thermostat (heating/cooling) 230 V (relay)
The room thermostat (heating/cooling) 230 V (relay) is an electronic room thermostat for controlling electrical heating devices or valve drives for 230 V. With the room thermostat, the room temperature can be regulated in enclosed areas.
Mounting is in a conventional DIN 49073 appliance box.
- Operating mode controller output: pulse width modulation (PWM) or 2-point control can be set
- Input for activation of cooling via central control
- Electronic room thermostat for controlling electrical heating devices (e.g. electric radiators, infrared heating or electric/hydronic underfloor heating systems) or valve drive for 230 V~
- Frost protection function
- Internal temperature sensor
- Manually switching off the temperature control
- Manually setting a comfort temperature
- Offset setting (correction value for the measured temperature)
- Continuous operation of the LED possible
- Room temperature control in enclosed areas
- Adjustable temperature limits
- Universal input for activating the ECO temperature via a master clock or switching to the comfort temperature for presence are adjustable
