Combination possibilities for upgrading an LB Management installation
There are various possibilities to upgrade an existing wired blinds-management installation with JUNG HOME.
Application example 1
In a wired blinds-management installation, only the push-button to the central control is implemented with JUNG HOME. All other push-buttons are provided with LB Management push-buttons.
This makes it possible to move all blinds centrally either manually or with the JUNG HOME app. If wanted, timer programs for automatic raising and lowering can be created. For safety, a central wind alarm can be installed.

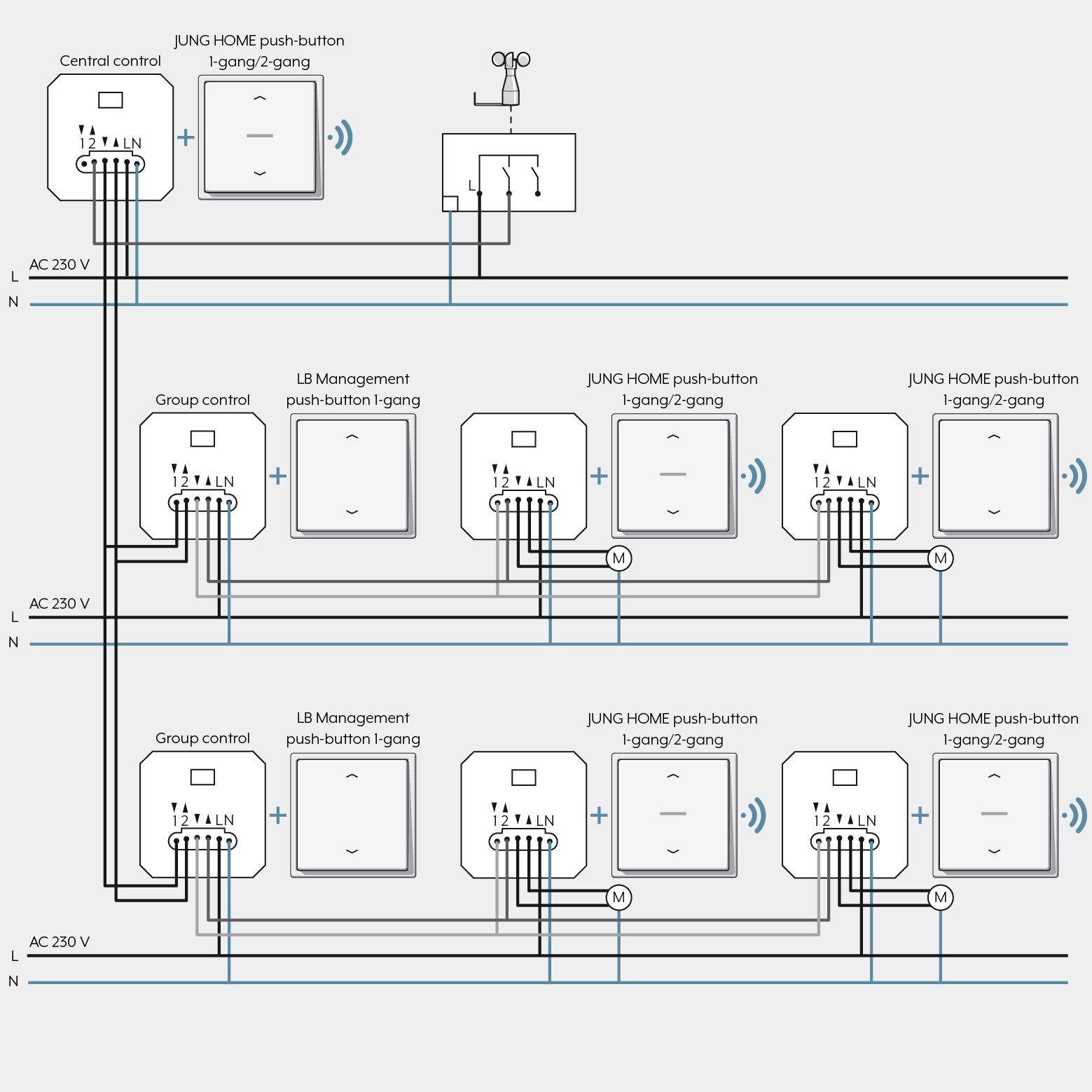

Application example 2
In a wired blinds management installation, the push-button for central control and the group control are implemented with JUNG HOME. All other push-buttons are provided with LB Management push-buttons.
With this, all blinds and the individual groups can be moved manually or using the JUNG HOME app. If wanted, timer programs for automatic raising and lowering can be created. For safety, a central wind alarm can be installed.
Application example 3
In a wired blinds management installation, the push-button for central control and the individual control are implemented with JUNG HOME. All other push-buttons are provided with LB Management push-buttons.
With this, all blinds and each individual blind can be moved manually or using the JUNG HOME app. If wanted, timer programs for automatic raising and lowering can be created. For safety, a central wind alarm can be installed. Group control is only possible manually.
Application example 4
In a wired blinds management installation, all push-buttons with the exception of the central control are implemented with JUNG HOME.
In this way, all blinds can be moved manually and the group control and individual control additionally with the JUNG HOME app. If wanted, timer programs for automatic raising and lowering can be created. For safety, a central wind alarm can be installed.

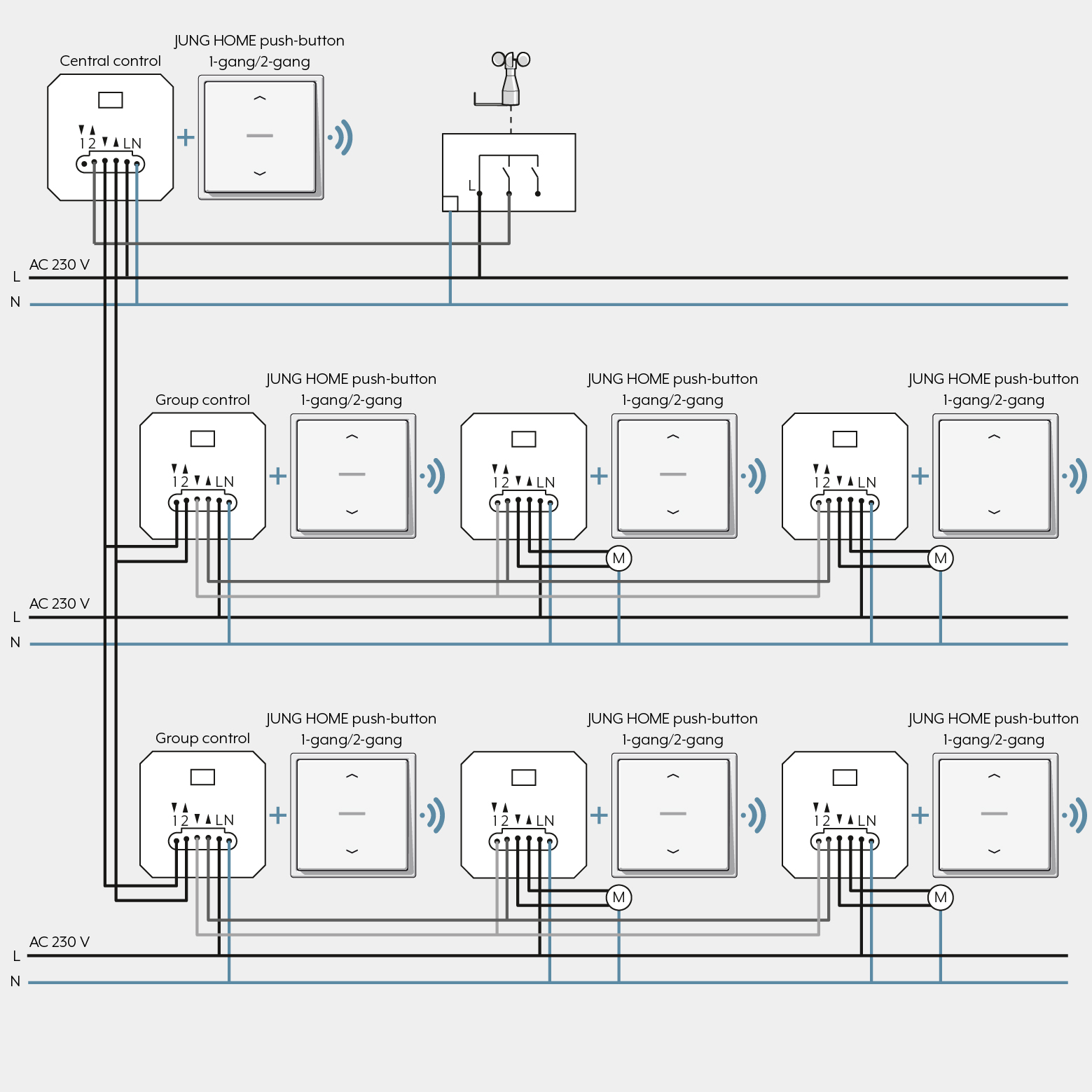

Application example 5
In a wired blinds management installation, all push-buttons are implemented with JUNG HOME.
In this way, all blinds can be moved manually or with the JUNG HOME app. If wanted, timer programs for automatic raising and lowering can be created. For safety, a central wind alarm can be installed.
