Installation and settings
Connecting and fitting the system insert
The satellite insert 3-wire in combination with JUNG HOME covers functions as a further control unit. The system insert only requires a 230 V power supply. Communication is wireless with no further wiring.
You can find more information about satellite units in the Satellite units chapter.
Note the following for the installation:
- Do not attach or replace the attachment under voltage, otherwise a malfunction can occur.
Proceed as follows for mounting:

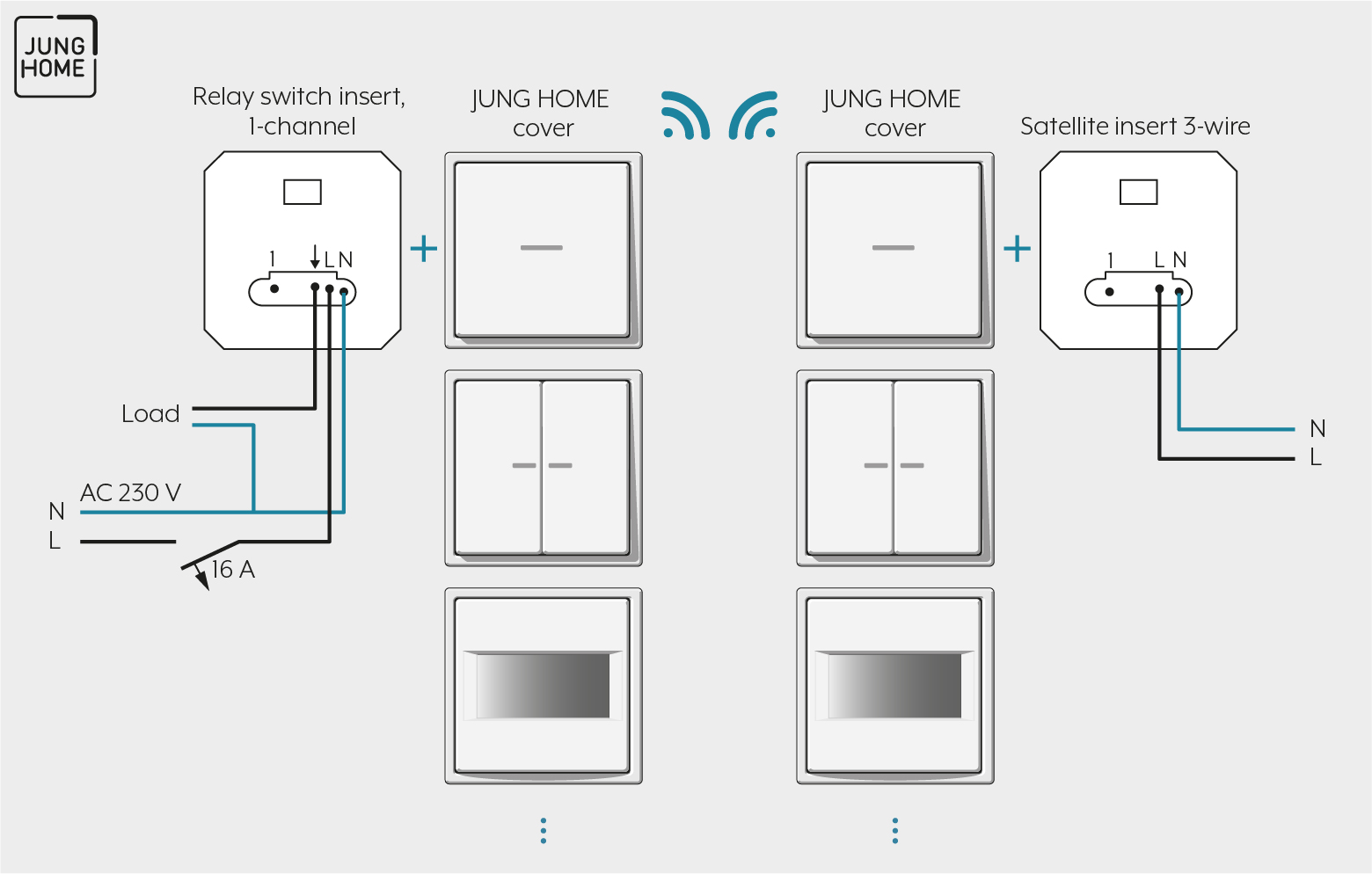

- Connect the system insert according to the connection diagram. Be aware in the process of clampable cable cross-sections.
- Mount the system insert in a wall box. Note that the connection terminals must be positioned at the bottom.
- Attach the frame and cover.
- Switch on the mains power.
Clampable conductor cross-sections | |
|---|---|
| 1 x 0.5 ... 4 mm² 2 x 0.5 ... 2.5 mm² |
| 1 x 0.5 ... 4 mm² 2 x 0.5 ... 2.5 mm² |
| 1 x 0.5 ... 4 mm² 2 x 0.5 ... 1.5 mm² |
