Installation and settings

Connecting and fitting the system insert

Note the following for the installation:

For protection, only the circuit breakers specified in the technical data may be used.
Observe the current carrying capacity: in total, the switching current for both outputs must not exceed 16 A.
JUNG HOME covers can only be operated with a terminal for N conductor connected to the system insert.
The load at both outputs can be switched by briefly pressing the TEST button.

Proceed as follows for mounting:

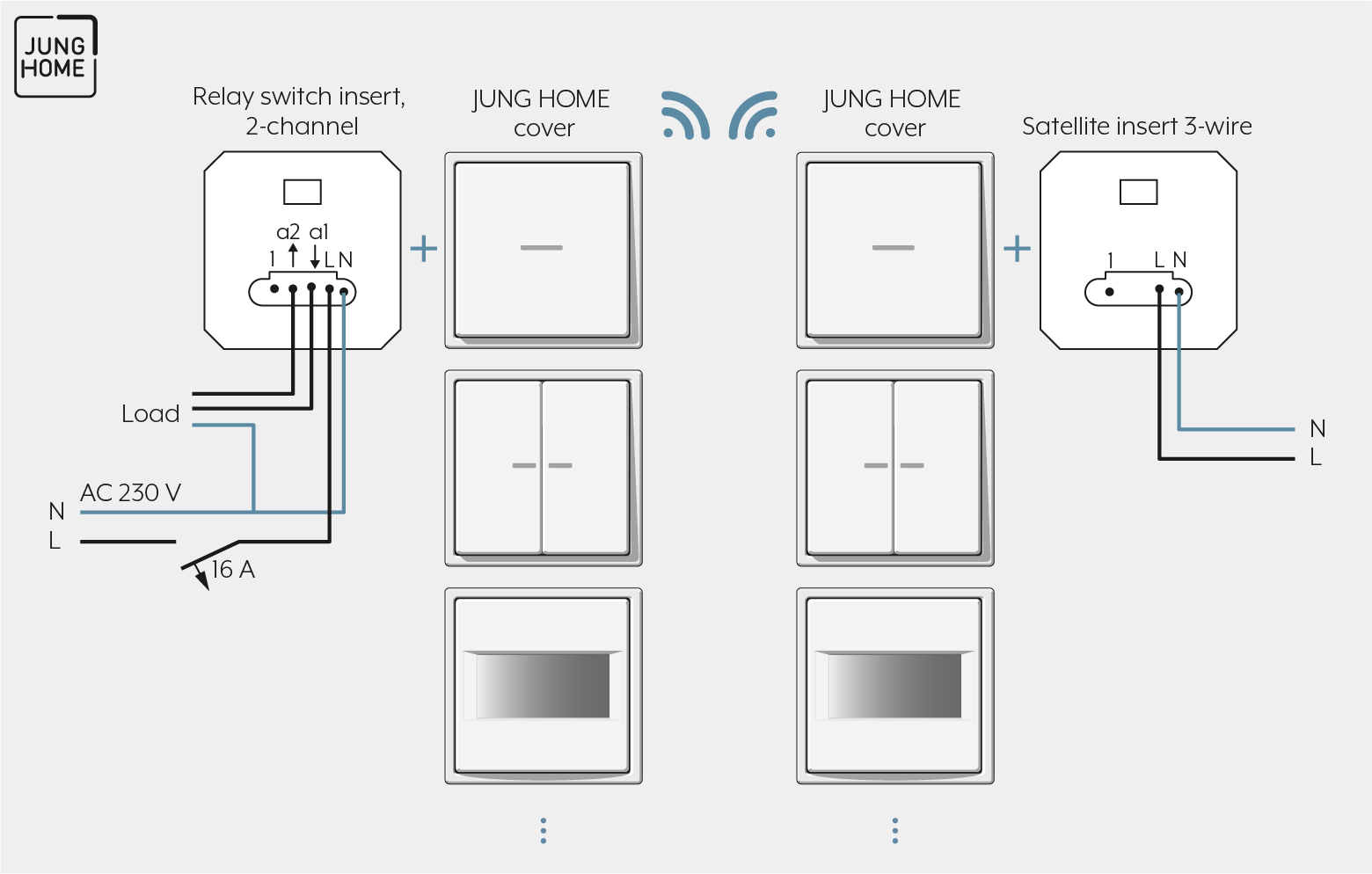

Connect the system insert according to the connection diagram. Be aware in the process of clampable cable cross-sections.

Clampable conductor cross-sections
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 2.5 mm²
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 2.5 mm²
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 1.5 mm²

Clampable conductor cross-sections

1 x 0.5 ... 4 mm²

2 x 0.5 ... 2.5 mm²

1 x 0.5 ... 4 mm²

2 x 0.5 ... 2.5 mm²

1 x 0.5 ... 4 mm²

2 x 0.5 ... 1.5 mm²
