Installation and settings

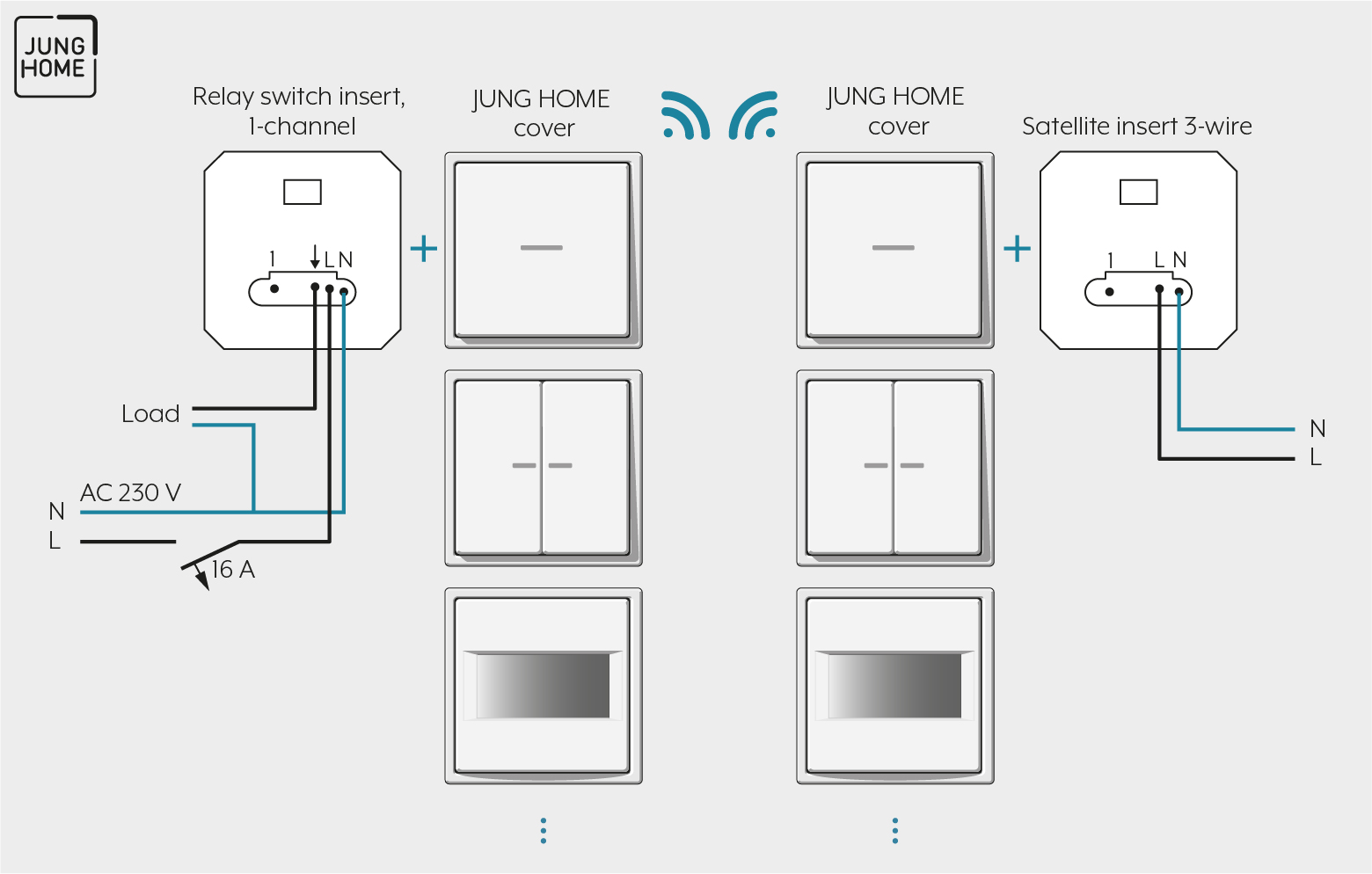

Connecting and fitting the system insert

Note the following for the installation:

JUNG HOME covers can only be operated with a terminal for N conductor connected to the system insert.
Do not attach or replace the cover under voltage, otherwise a malfunction can occur.

Clampable conductor cross-sections
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 2.5 mm²
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 2.5 mm²
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 1.5 mm²

Clampable conductor cross-sections

1 x 0.5 ... 4 mm²

2 x 0.5 ... 2.5 mm²

1 x 0.5 ... 4 mm²

2 x 0.5 ... 2.5 mm²

1 x 0.5 ... 4 mm²

2 x 0.5 ... 1.5 mm²
