Configuring motion detector
If a movement detector is supplied with mains power, it starts a calibration process of the environment for max. 60 seconds. In this time, no movement is detected and one switching command is accepted. The lighting is switched on during the calibration.

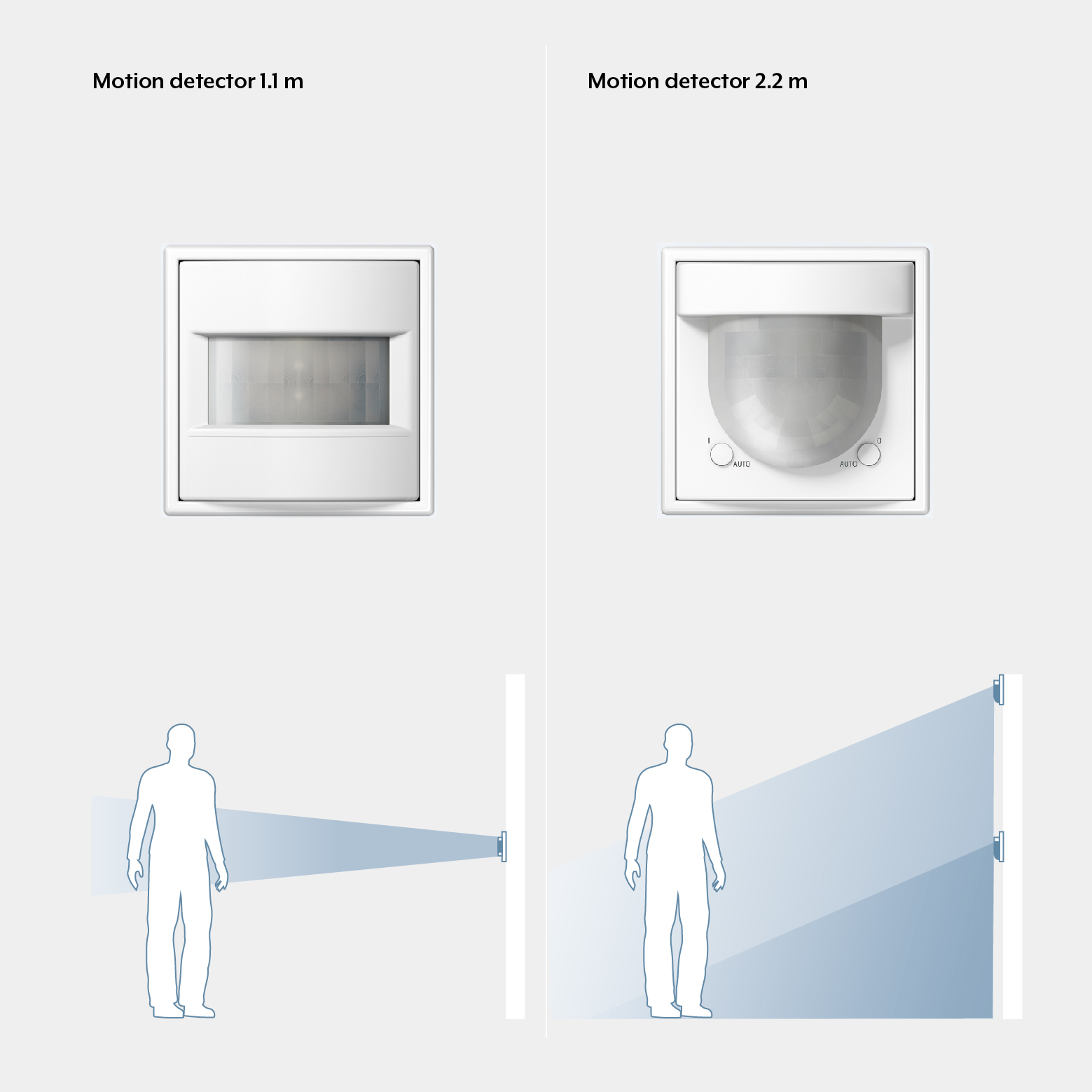

Detection range and range of the motion detectors
In the case of nominal installation height of the movement detectors of 1.10 metres or 2.20 metres, the following results as seen from the mounting position:
- A detection range with a detection angle of 180°
- A frontal monitoring range of up to 30 metres
- A lateral monitoring range of up to 15 metres
The information on range is influenced by the mounting height and direction of movement. For movements at a tangent to the motion detector, a signal arises that can be accurately evaluated. For movements radially towards the motion detector, the signal is more difficult to evaluate and thus the range smaller.
Multi-coloured status indication
Blinking behaviour of the LED | Explanation |
|---|---|
The LED flashes red. | The disabling function is, for example, continuous ON/OFF. With the "walking test" activated, a movement is detected. |
The LED blinks blue 3x. | The time has not been set, for example, due to a long power failure. |
The LED blinks alternately green and red. | A device update is being carried out. |
The LED blinks red 3x. | Error message. The cover was previously linked to a different system insert. |
The LED blinks red, green and orange in sequence. | The self test is being run. |
Detection range taking account of sensitivity
JUNG HOME motion detector 1.1 m
Sensitivity | Tangential movements | Radial movements |
|---|---|---|
25 % | ~ 7 x 9 m | ~ 1 x 2 m |
50 % | ~ 8 x 10 m | ~ 3 x 4 m |
75 % | ~ 9 x 12 m | ~ 4 x 6 m |
100 % | ~ 10 x 18 m | ~ 5 x 7 m |
JUNG HOME motion detector 2.2 m
Sensitivity | Tangential movements | Radial movements |
|---|---|---|
25 % | ~ 7 x 12 m | ~ 3 x 2 m |
50 % | ~ 11 x 13 m | ~ 4 x 4 m |
75 % | ~ 13 x 15 m | ~ 6 x 5 m |
100 % | ~ 15 x 20 m | ~ 9 x 9 m |
Options for limitation of the detection range
The detection range of the motion detector can be limited if required. This gives you more flexibility for the selection of the mounting location.
For the JUNG HOME motion detector 1.1 m, you can also activate / deactivate the individual sensors using the app. Thus, the detection range on the left and on the right can be restricted by 60°.
The detection range of the JUNG HOME motion detector 2.2 m can also be individually adjusted using the app.
Options for extending the detection range
You can extend the detection range wirelessly. To do so, use a satellite insert 3-wire with a JUNG HOME presence detector or motion detector and link these to the main unit with the JUNG HOME app.
An overview of the configurable parameters and operating modes for the motion detectors associated with the installed system inserts can be found in Chapter "Configure the JUNG HOME motion detector 1.1 m / 2.2 m".

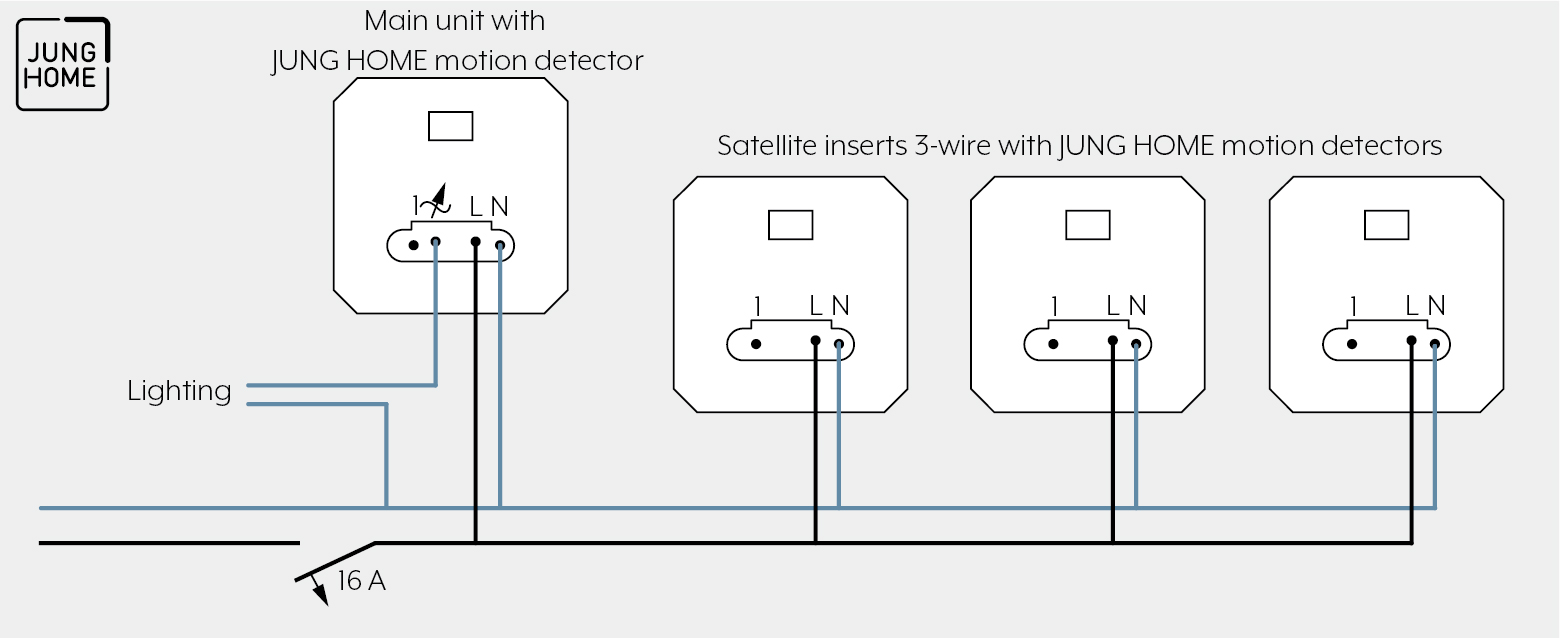

Creation of an extended monitoring zone
If a room or property needs an extended monitoring zone, multiple movement detectors can be connected together. For this, you need a motion detector main unit (for example an LED touch dimmer Universal with JUNG HOME motion detector 1.1 m or alternatively a JUNG HOME presence detector) that you connect one or more satellite units (satellite insert 3-wire with JUNG HOME motion detector) to using the satellite unit terminal 1.
The motion detector satellite units extend the detection range and also initiate the lighting control via the main unit.
