Installation and settings

Connecting and mounting JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs

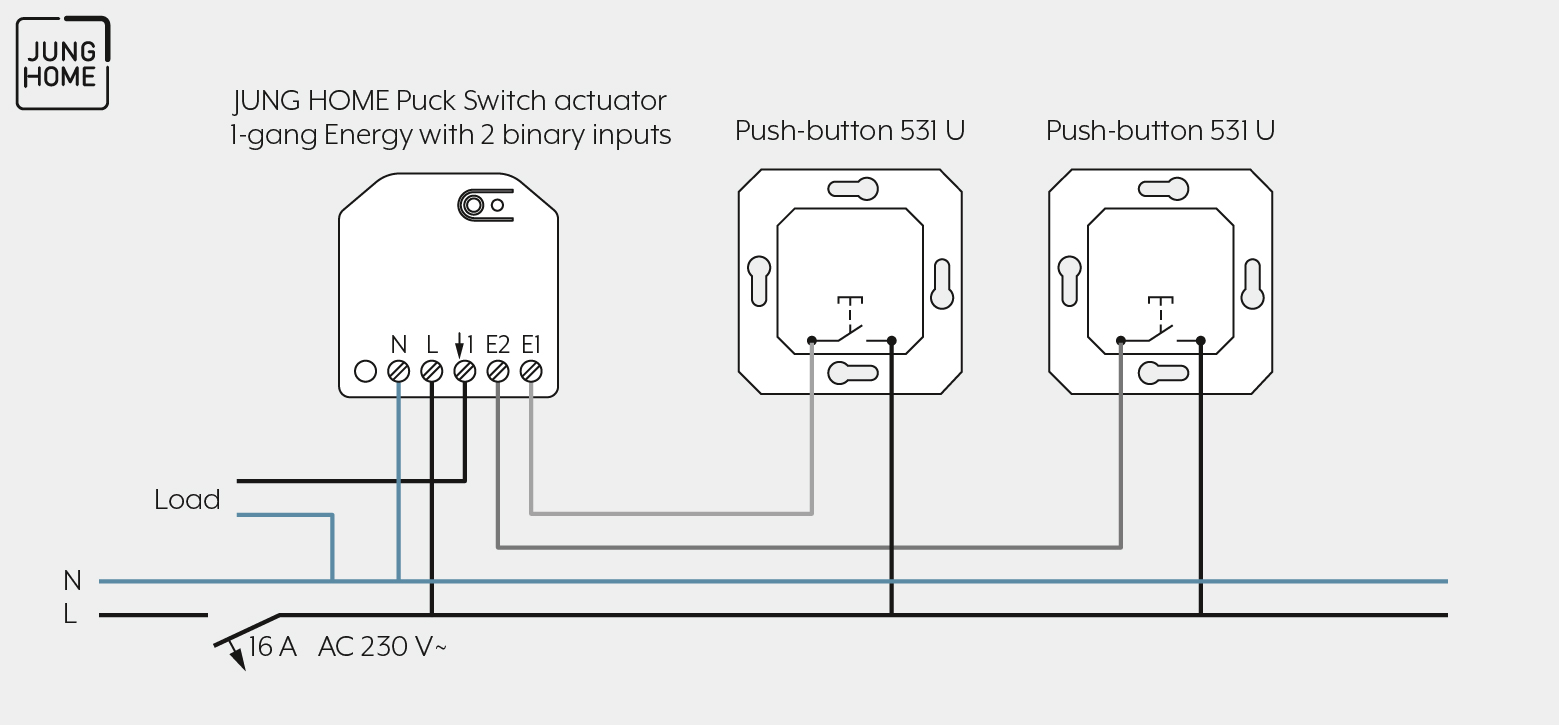

Below you can see an example for connecting the devices. Further examples for other connection possibilities can be found in the operating instructions for the JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs.

Note the following for the mounting:

Proceed as follows for mounting:

  1. Connect the JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs in accordance with the wiring diagram. Note the clampable conductor cross sections.
    Note that illuminated push-buttons must have a separate terminal for N conductor. If the lighting is intended to be used as status feedback for the switching state of a load connected wirelessly to the binary input, the switch actuator can be used to trigger the push-button lighting.
  2. Position the JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs in the wall box such that the Prog button and the status LED are visible.
  3. Switch on the mains voltage.
  4. Briefly press the Prog button to switch the load.
  5. Mount the appropriate cover.

CLAMPABLE CONDUCTOR CROSS SECTION

1 x 0.5 … 4 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 4 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 2.5 mm²
2 x 0.5 … 1.5 mm²

Commissioning

For how to commission the JUNG HOME Puck switch actuator 1-gang Energy with 2 binary inputs using the JUNG HOME app, see Chapter "Pair device".
