Installation and settings

Connecting and mounting JUNG HOME Puck Power DALI-2 controller TW with 2 binary inputs

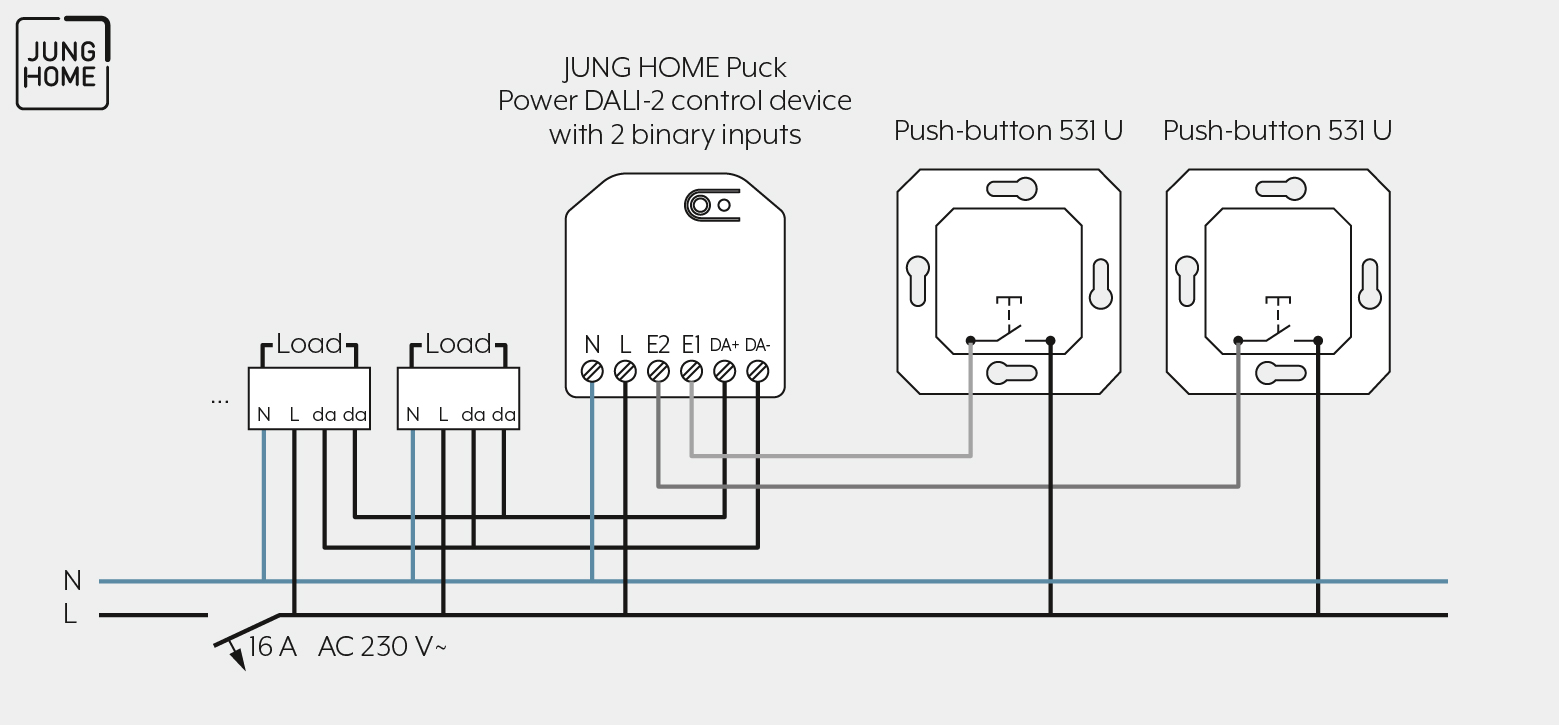

Below you can see an example for connecting the devices. Further examples for other connection possibilities can be found in the operating instructions for the JUNG HOME Puck Power DALI-2 controller with 2 binary inputs.

Note the following for the mounting:

Note: DALI and mains voltage wires can be run together in a cable, e.g. NYM 5x1.5 mm². A combination with an external DALI power supply is not permitted.

Proceed as follows for mounting:

  1. Connect the JUNG HOME Puck Power DALI-2 controller TW with 2 binary inputs and the loads in accordance with the connection diagram.
    Note the clampable conductor cross sections.
    Note that illuminated push-buttons must have a terminal for N conductor.
    The connected DALI devices may be operated on different line conductors.
  2. Position the JUNG HOME Puck Power DALI-2 controller TW with 2 binary inputs in the wall box such that the Prog button and the status LED are visible.
  3. Switch on the mains voltage.
  4. Briefly press the Prog button to move the load as a test.
  5. Mount the appropriate cover.

CLAMPABLE CONDUCTOR CROSS SECTION

1 x 0.5 … 4 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 4 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 2.5 mm²
2 x 0.5 … 1.5 mm²

Commissioning

For how to commission the JUNG HOME Puck Power DALI-2 controller TW with 2 binary inputs using the JUNG HOME app, see Chapter "Pair device".
