Installation and settings

Connecting and mounting JUNG HOME Puck blinds actuator 1-gang with 2 binary inputs

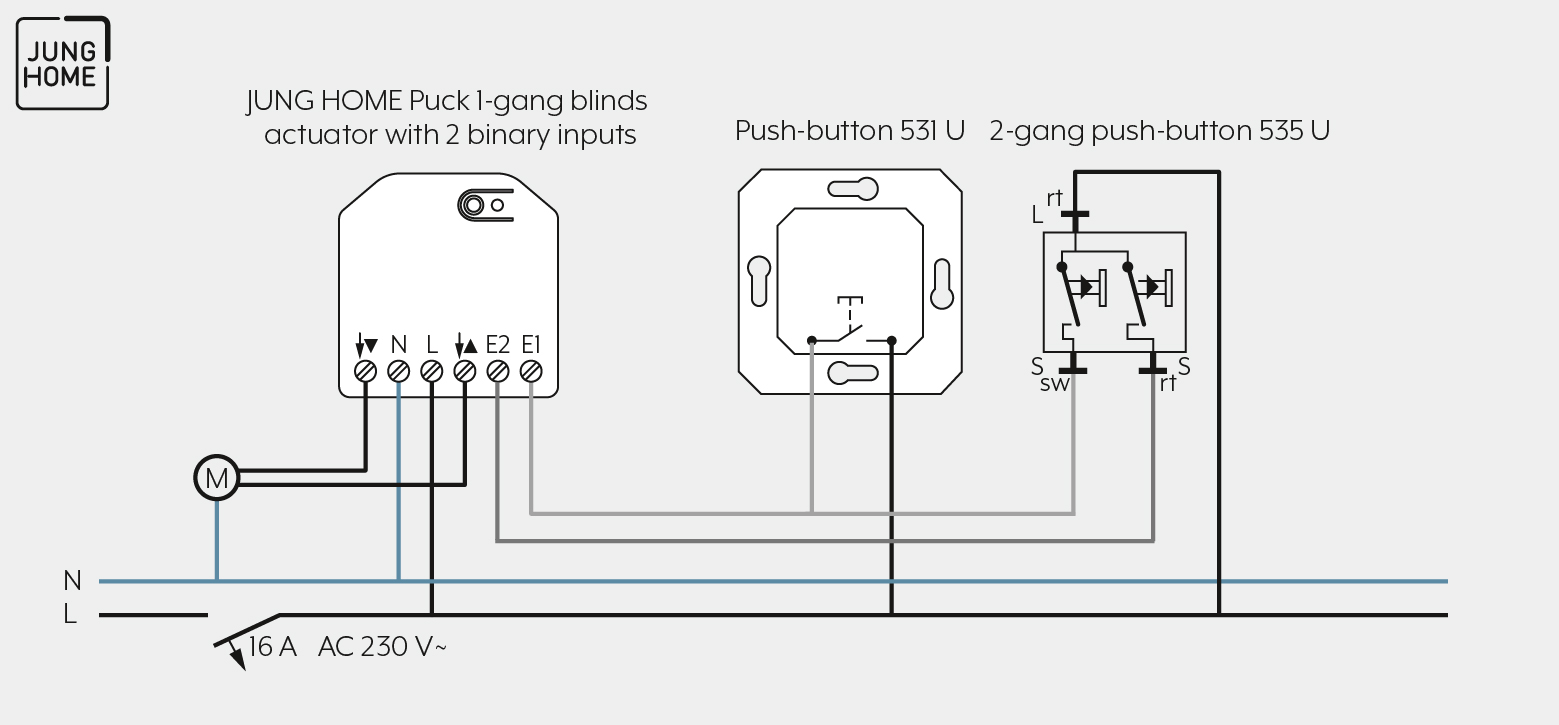

Below you can see an example for connecting the devices. Further examples for other connection possibilities can be found in the operating instructions for the JUNG HOME Puck blinds actuator 1-gang with 2 binary inputs.

Note the following for the mounting:

Proceed as follows for mounting:

  1. Connect the JUNG HOME Puck blinds actuator 1-gang with 2 binary inputs in accordance with the wiring diagram.
    If a multi push-button, 2-gang push-button or a wind converter with wind sensor is being used, properly connect these devices to the wind sensor. More information on connecting these devices to the wind sensor can be found in the operating instructions for a JUNG HOME Puck.
    Note the clampable conductor cross section that illuminated push-buttons require a separate terminal for N conductor.
  2. Position the JUNG HOME Puck blinds actuator 1-gang with 2 binary inputs in the wall box such that the Prog button and the status LED are visible.
  3. Switch on the mains voltage.
  4. Briefly press the Prog button to move the blind/shutter/awning as a test.
  5. Mount the appropriate cover.

CLAMPABLE CONDUCTOR CROSS SECTION

1 x 0.5 … 4 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 4 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 2.5 mm²
2 x 0.5 … 1.5 mm²

Commissioning

For how to commission the JUNG HOME Puck blinds actuator 1-gang with 2 binary inputs using the JUNG HOME app, see Chapter "Pair device".
