Installation and settings

Connect and mount JUNG HOME Puck binary input 2-gang, battery-powered

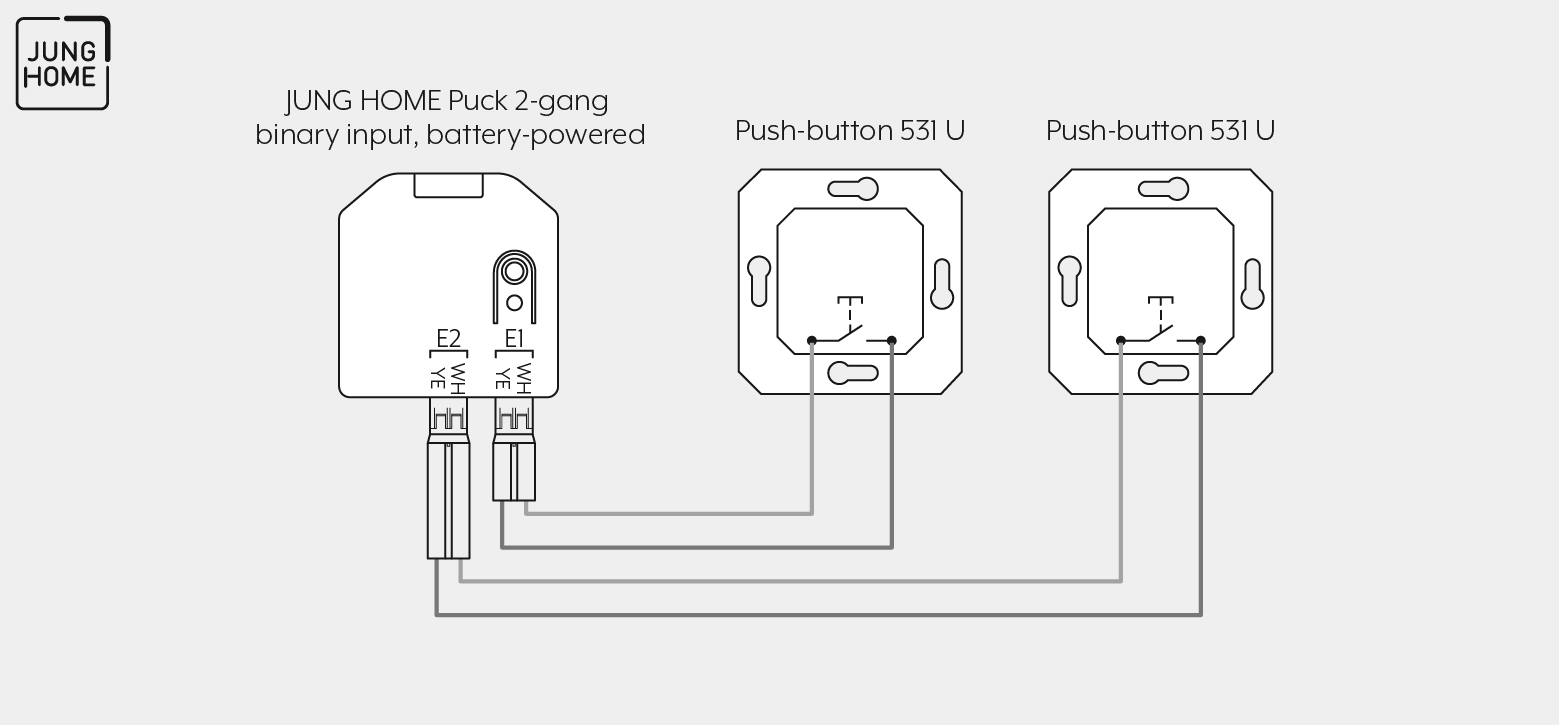

Below you can see an example for connecting the devices. Further examples for other connection possibilities can be found in the operating instructions for the JUNG HOME Puck binary input 2-gang, battery-powered.

Inserting the battery:

  1. Press the catch down and open the housing.
  2. Insert the battery observing the correct polarity.
  3. Replace the housing lid and secure the housing.

Note the following for the mounting:

Proceed as follows for mounting:

  1. Connect the binary input to the push-button in accordance with the connection diagram.
    If a 2-gang push-button or multi push-button is being used, properly connect the binary input to these devices. You can find more information on connecting to a 2-gang push-button or multi push-button in the operating instructions for the JUNG HOME Puck binary input 2-gang, battery-powered.
  2. Position the JUNG HOME Puck binary input 2-gang battery-powered in the wall box such that the Prog button and the status LED are visible.
  3. Mount the appropriate cover.

Commissioning

For how to commission the JUNG HOME Puck binary input 2-gang battery-powered using the JUNG HOME app, see Chapter "Pair device".
