Installation and settings

Connecting and mounting JUNG HOME Puck switch actuator 2-gang with 2 binary inputs

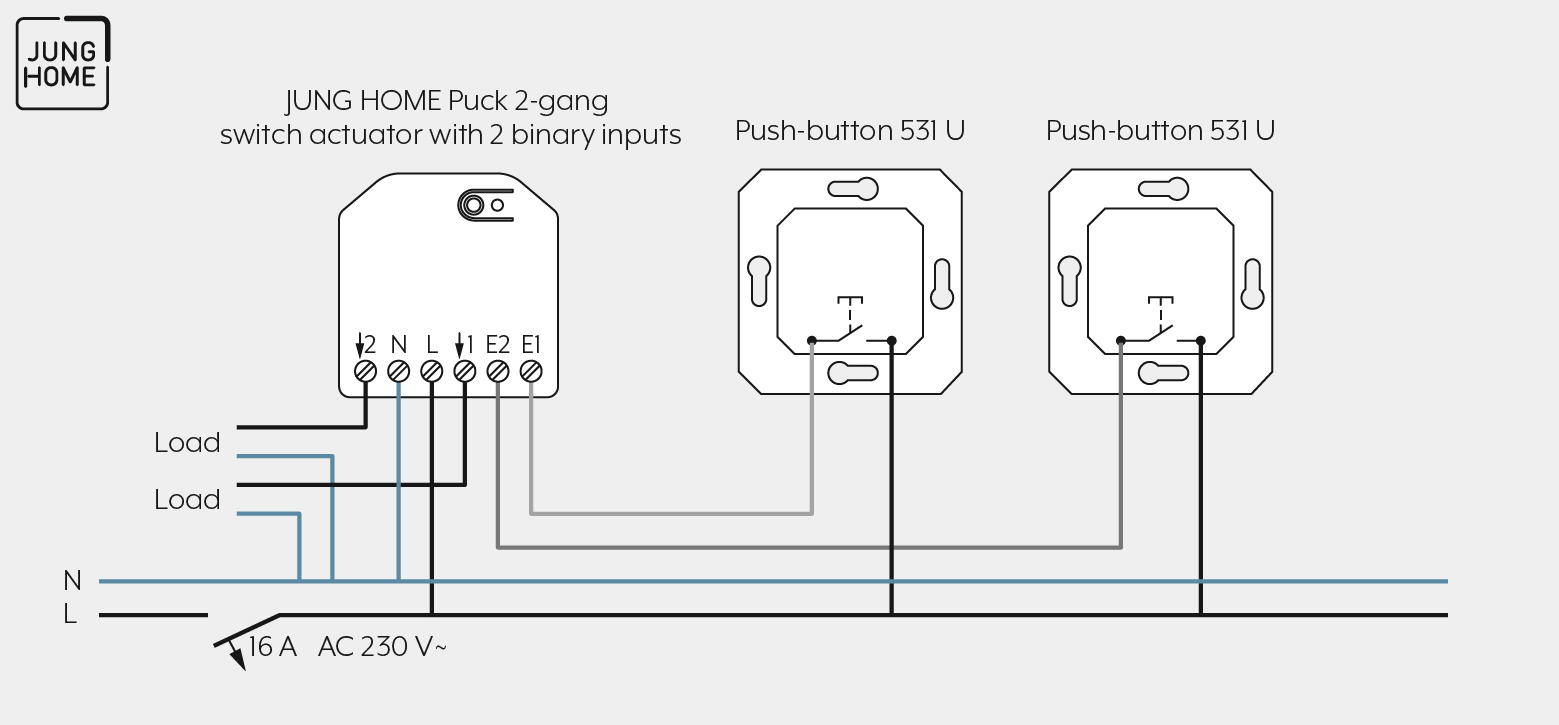

Below you can see an example for connecting the devices. Further examples for other connection possibilities can be found in the operating instructions for the JUNG HOME Puck switch actuator 2-gang with 2 binary inputs.

Note the following for the mounting:

Proceed as follows for mounting:

  1. Connect the JUNG HOME Puck switch actuator 2-gang mini with 2 binary inputs in accordance with the wiring diagram. Note the clampable conductor cross sections.
  2. Position the JUNG HOME Puck switch actuator 2-gang with 2 binary inputs in the wall box such that the Prog button and the status LED are visible.
  3. Switch on the mains voltage.
  4. Briefly press the Prog button to switch the load.
  5. Mount the appropriate cover.

CLAMPABLE CONDUCTOR CROSS SECTION

1 x 0.5 … 4 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 4 mm²
2 x 0.5 … 2.5 mm²

1 x 0.5 … 2.5 mm²
2 x 0.5 … 1.5 mm²

Commissioning

For how to commission the JUNG HOME Puck switch actuator, 2-gang with 2 binary inputs using the JUNG HOME app, see Chapter "Pair device".
