Operating philosophy for switching, sensing, dimming

Combine various functions in the room sensibly into scenes, label with self-explanatory symbols and call up jointly at the press of a button: a smart win for the guest. Can be programmed individually according to the experience values of the owner.

The operating philosophy



Conventional/
electronic, 230 V

(KNX) building technology

JUNG bus

24 V

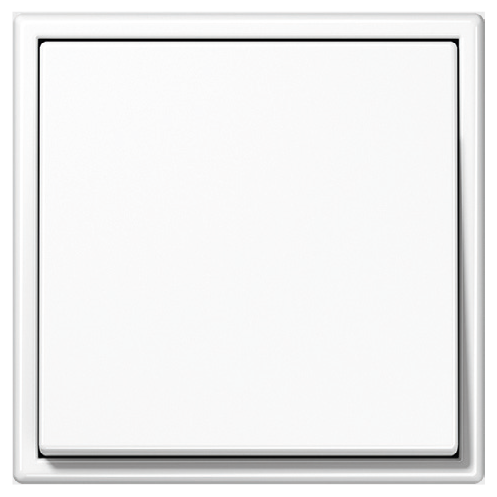

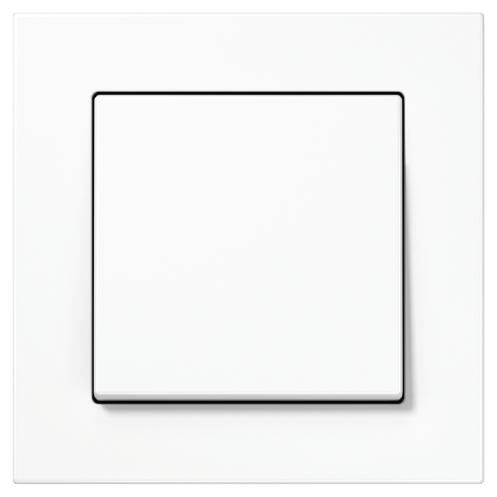

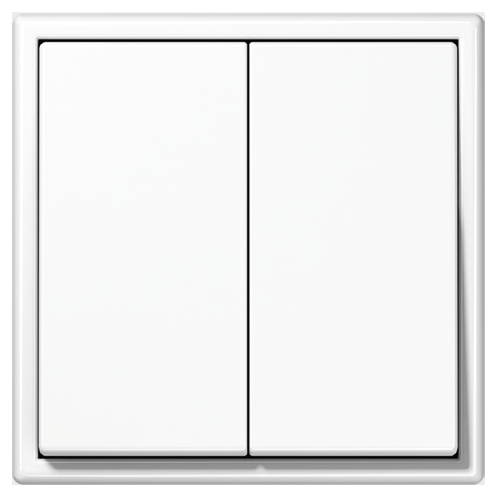

Rocker/push switch
push-button, touch dimmer

●

●

–

●

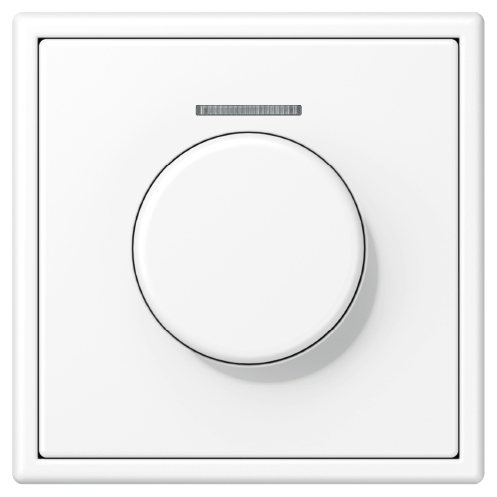

Rotary dimmer
(rotary sensor)

●

(●)

–

–

KNX push-button F 10

–

●

–

–

F 40

–

●

●

●

F 50

●

●

–

–

Button assignment possibilities in KNX F 10

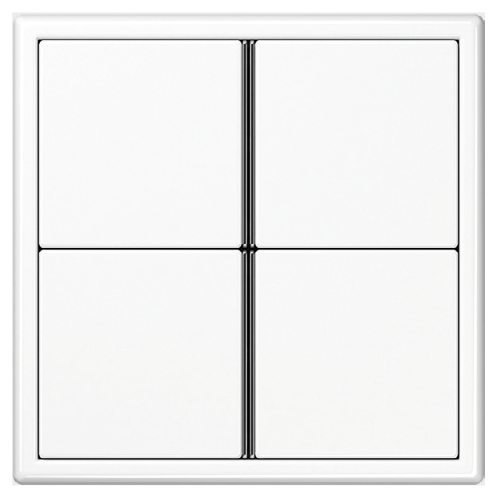

Button assignment possibilities in KNX F 40

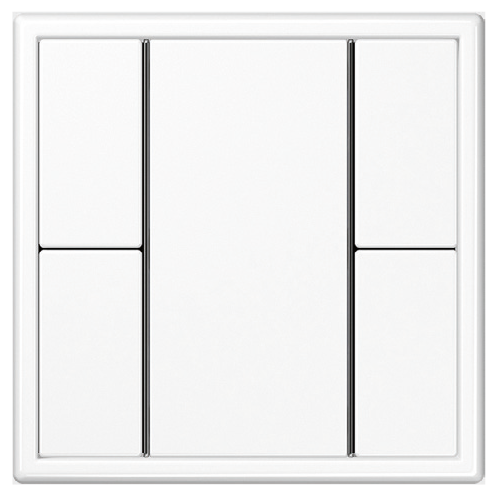

Button assignment possibilities in KNX F 50
