Luxury B

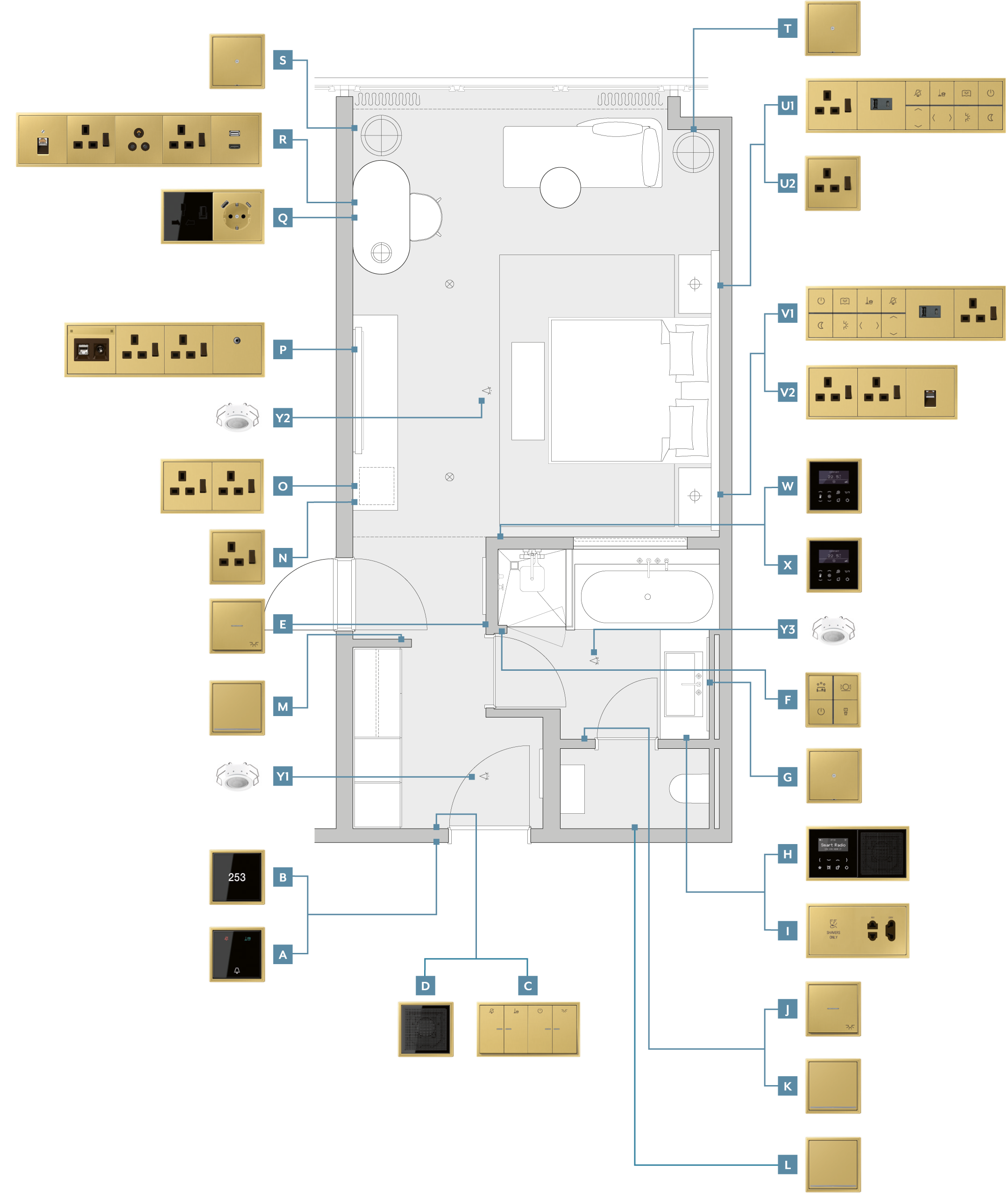

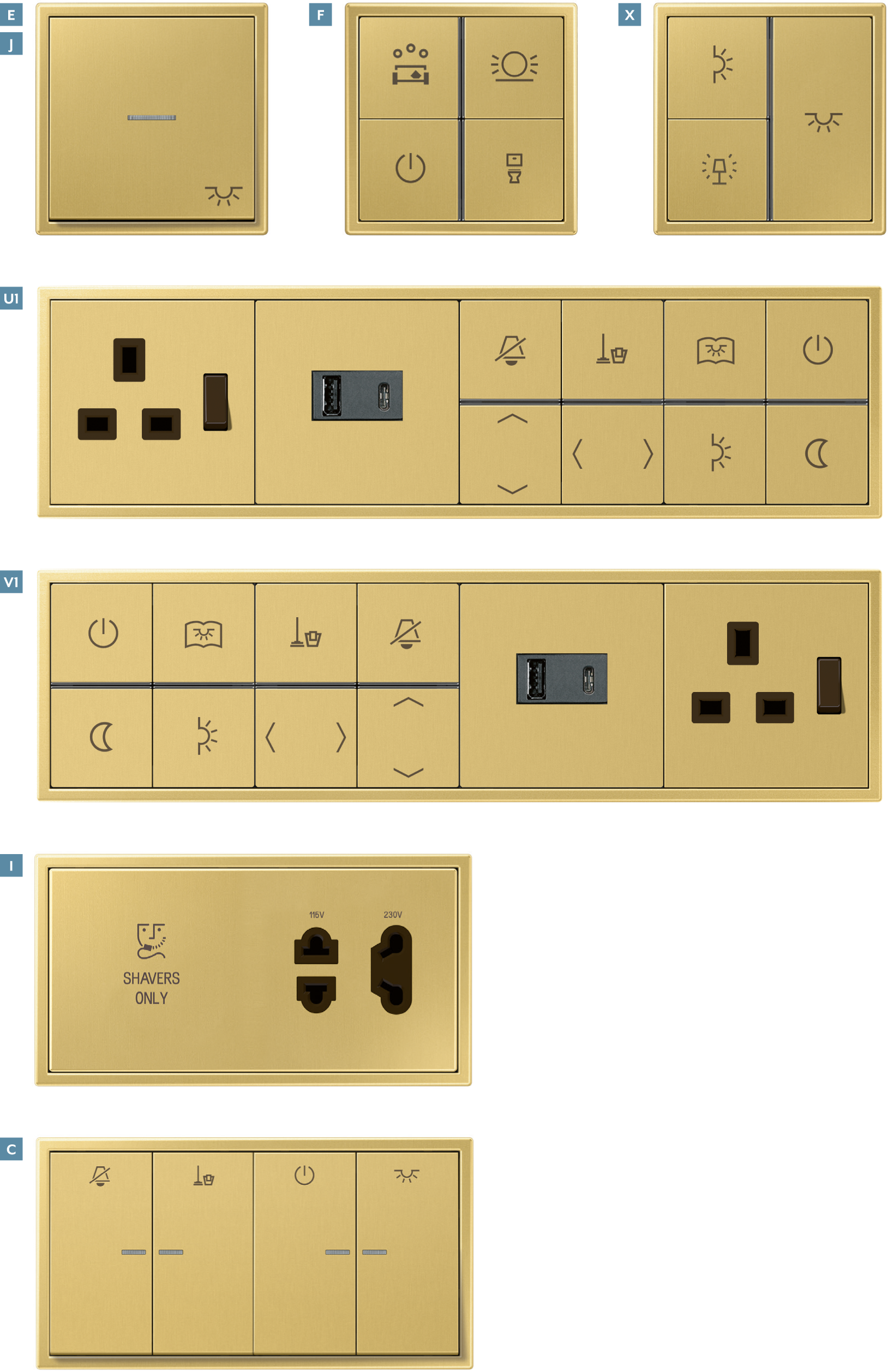

For a detailed view of the graphics, individual units are shown magnified here.
No. | Components | See also | Quantity |
|---|---|---|---|
O | British Standard socket switched LS range classic brass | 2 | |
O | 2-gang frame LS 990 design range classic brass | 1 | |
N | British Standard socket switched LS range classic brass | 1 | |
N | 1-gang frame LS 990 design range classic brass | 1 | |
P | Smart TV socket LS range | 1 | |
P | Centre plate with inscription field LS range classic brass | https://www.jung-group.com/de-DE/p/Smart-TV-Anschlussdose-Messing-classic/MMD-ME-4521-C | 1 |
P | British Standard socket switched LS range classic brass | 2 | |
P | Multimedia connection 3.5mm plug LS range classic brass | On request | 1 |
P | 4-gang frame LS 990 design range classic brass | 1 | |
Q | SCHUKO® socket with USB charger CA LS range classic brass | 1 | |
Q | Socket type G + I LS range black | 1 | |
Q | 2-gang frame LS 990 design range classic brass | 1 | |
R | Modular jack socket, cat. 3 | 1 | |
R | Cover IAE/UAE LS range classic brass | 1 | |
R | British Standard socket switched LS range classic brass | 1 | |
R | British Standard insert 5A | 1 | |
R | British Standard centre plate LS range classic brass | 1 | |
R | British Standard socket switched LS range classic brass | 1 | |
R | 5-gang frame LS 990 design range classic brass | 1 | |
S | Cable outlet with strain relief LS range classic brass | 1 | |
S | 1-gang frame LS 990 design range classic brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
T | Cable outlet with strain relief LS range classic brass | 1 | |
T | 1-gang frame LS 990 design range classic brass | 1 | |
U1 / V1 | British Standard socket switched LS range classic brass | 2 | |
U1 / V1 | USB charger black | 2 | |
U1 / V1 | Centre plate USB charger LS range classic brass | 2 | |
U1 / V1 | KNX universal push-button module 4-gang, F40, secure | 2 | |
U1 / V1 | Cover kit 4-gang LS range classic brass | 2 | |
U1 / V1 | KNX universal push-button module 4-gang, F40, secure | 2 | |
U1 / V1 | Cover kit 4-gang LS range classic brass | 2 | |
U1 / V1 | 4-gang frame LS 990 design range classic brass | 2 | |
U2 | British Standard socket switched LS range classic brass | 1 | |
U2 | 1-gang frame LS 990 design range classic brass | 1 | |
V2 | British Standard socket switched LS range classic brass | 2 | |
V2 | Modular jack socket, cat. 3 | 1 | |
V2 | Cover IAE/UAE LS range classic brass | 1 | |
V2 | 3-gang frame LS 990 design range classic brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
A | Hotel push-button corridor unit 1-pole, 1-way NO contact 230V | 1 | |
A | Hotel rocker (glass), corridor unit LS range black | 1 | |
A | 1-gang frame LS 990 design range classic brass | 1 | |
B | LED pilot light | 1 | |
B | Glass cover LS range black | Labelling tool | 1 |
B | 1-gang frame LS 990 design range classic brass | 1 | |
C | KNX push-button universal 2-gang | 1 | |
C | Hotel rocker room unit LS range classic brass | On request | 1 |
C | KNX push-button standard 1-gang | 1 | |
C | Rocker with lens LS range classic brass | 1 | |
C | 2-gang frame LS 990 design range classic brass | 1 | |
D | Triple-tone door signal classic brass | On request | 1 |
D | 1-gang frame LS 990 design range classic brass | 1 | |
M | LED floor pilot light LS range classic brass | 1 | |
M | 1-gang frame LS 990 design range classic brass | 1 | |
W | KNX fan coil room thermostat LS range black | 1 | |
W | 1-gang frame LS 990 design range classic brass | 1 | |
X | KNX universal push-button module 3-gang, F40, secure | 1 | |
X | Cover kit 3-gang LS range classic brass | 1 | |
X | 1-gang frame LS 990 design range classic brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
E | KNX push-button standard 1-gang | 1 | |
E | Rocker with lens LS range classic brass | 1 | |
E | 1-gang frame LS 990 design range classic brass | 1 | |
Distribution board | Power supply for rail mounting 24V DC | 1 | |
Distribution board | KNX power supply with IP interface | 1 | |
Distribution board | KNX switch / blinds actuator 24/12-gang | 1 | |
Distribution board | KNX LED Universal dimming actuator, 2-gang | 1 | |
Distribution board | KNX 6-gang binary input | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
F | KNX universal push-button module 4-gang, F40, secure | 1 | |
F | Cover kit 4-gang LS range classic brass | 1 | |
F | 1-gang frame LS 990 design range classic brass | 1 | |
Y1-Y3 | KNX presence detector mini | 3 |
No. | Components | See also | Quantity |
|---|---|---|---|
G | Cable outlet with strain relief LS range | 1 | |
G | 1-gang frame LS 990 design range classic brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
J | KNX push-button standard 1-gang | 1 | |
J | Rocker with lens LS range classic brass | 1 | |
J | 1-gang frame LS 990 design range classic brass | 1 | |
H | Smart Radio DAB+ Bluetooth mono LS range black | 1 | |
H | 2-gang frame LS 990 design range classic brass | 1 | |
I | Electric shaver socket insert | 1 | |
I | Centre plate electric shaver socket LS range classic brass horizontal | On request | 1 |
I | 2-gang frame LS 990 design range classic brass | 1 | |
K | LED floor pilot light LS range classic brass | 1 | |
K | 1-gang frame LS 990 design range classic brass | 1 | |
L | LED floor pilot light LS range classic brass | 1 | |
L | 1-gang frame LS 990 design range classic brass | 1 |
