Luxury A

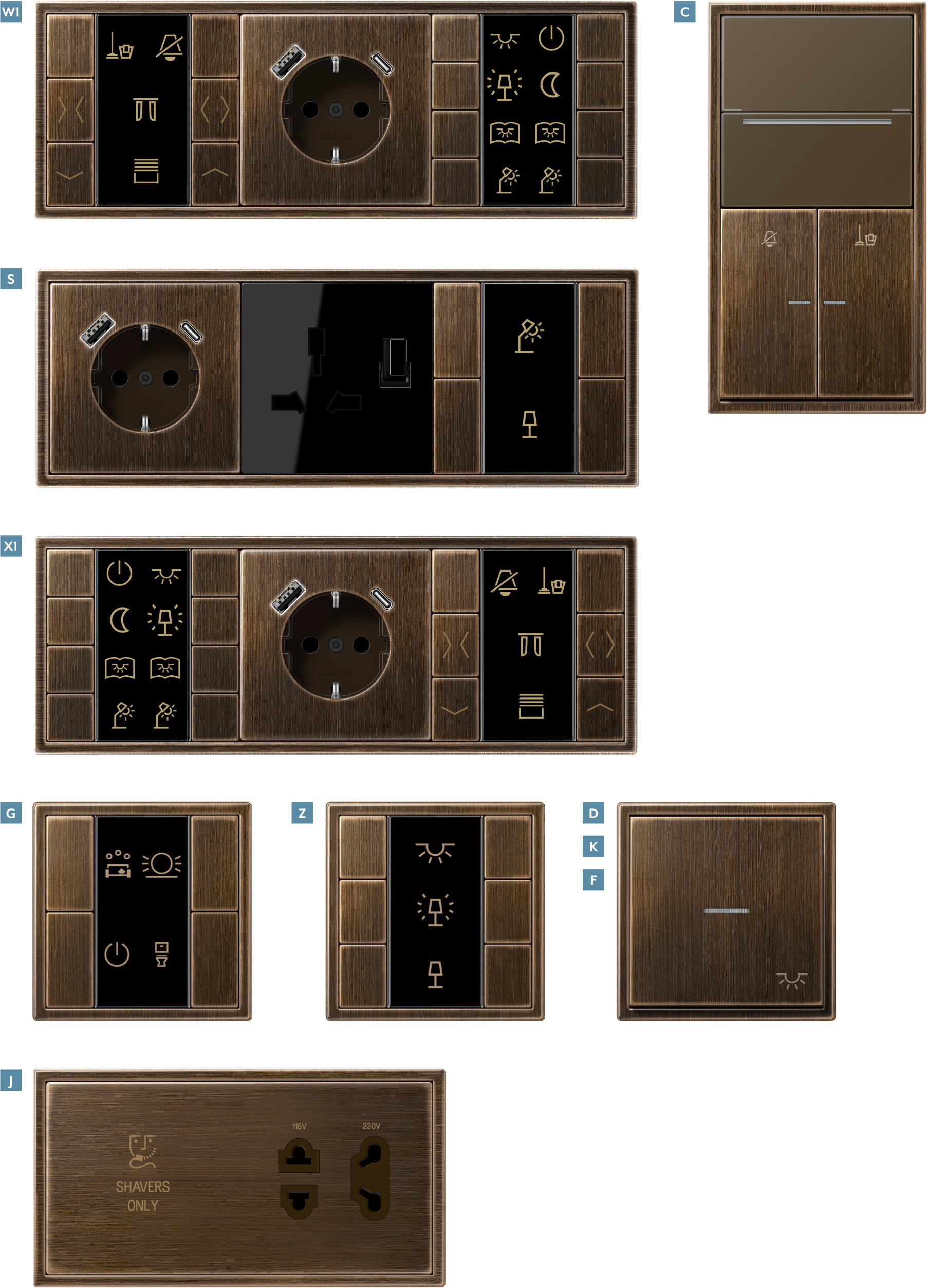

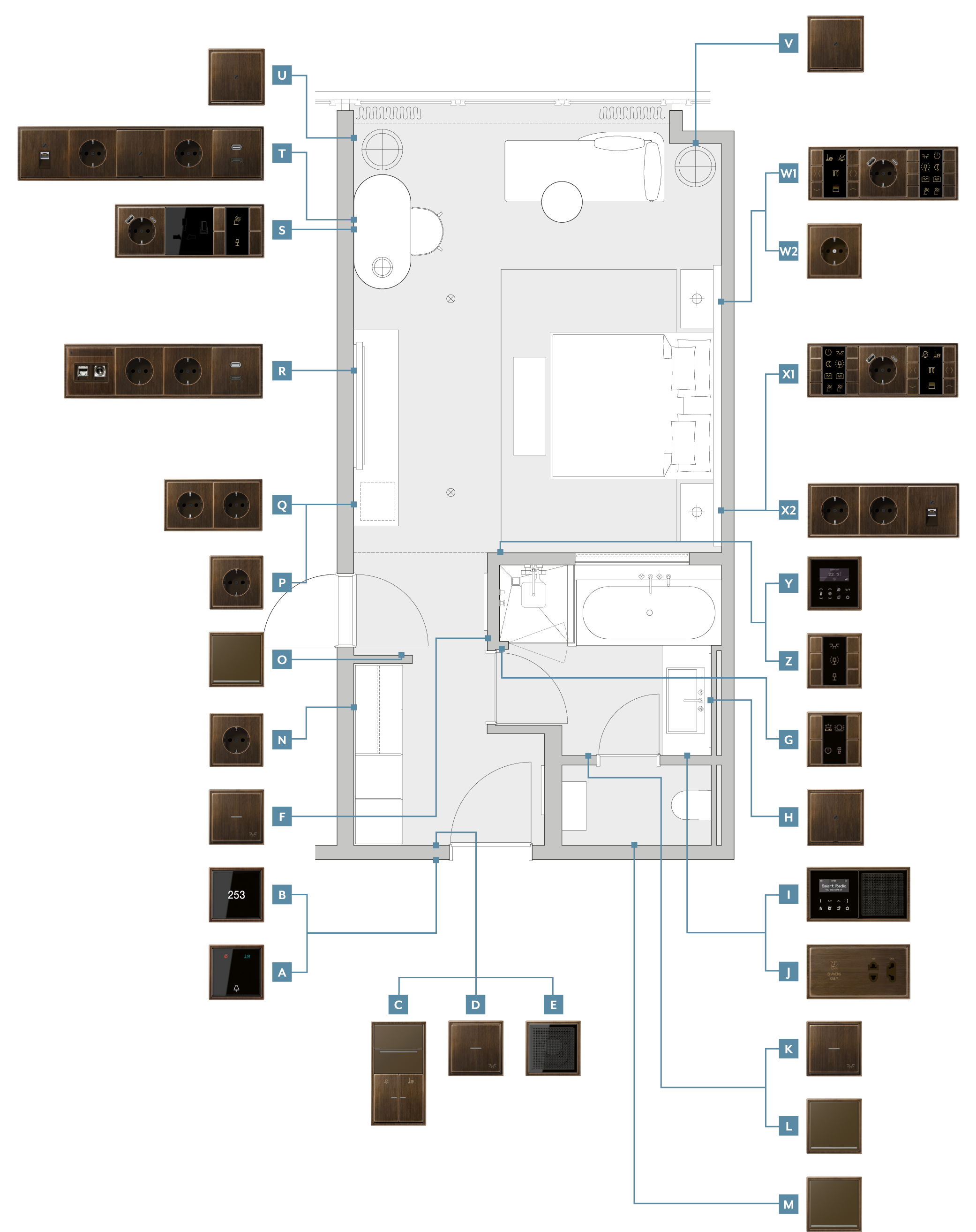

For a detailed view of the graphics, individual units are shown magnified here.
No. | Components | See also | Quantity |
|---|---|---|---|
N | SCHUKO® socket LS range antique brass | 1 | |
N | 1-gang frame LS 990 design range antique brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
P | SCHUKO® socket LS range antique brass | 1 | |
P | 1-gang frame LS 990 design range antique brass | 1 | |
Q | SCHUKO® socket LS range antique brass | 2 | |
Q | 2-gang frame LS 990 design range antique brass | 1 | |
R | Smart TV socket with inscription field LS range in antique brass | On request | 1 |
R | SCHUKO® socket LS range antique brass | 2 | |
R | Multimedia connection 3.5mm plug LS range antique brass | On request | 1 |
R | 4-gang frame LS 990 design range antique brass | 1 | |
S | SCHUKO® socket with USB charger CA LS range antique brass | 1 | |
S | Socket type G + I LS range black | 1 | |
S | KNX universal push-button module, 2-gang, F50, secure | 1 | |
S | Cover kit 2-gang LS range antique brass | 1 | |
S | 3-gang frame LS 990 design range antique brass | 1 | |
T | Modular jack socket, cat. 3 | 1 | |
T | Cover IAE/UAE LS range antique brass | 1 | |
T | SCHUKO® socket LS range antique brass | 1 | |
T | Cable outlet (with strain relief) LS range antique brass | 1 | |
T | SCHUKO® socket LS range antique brass | 1 | |
T | 5-gang frame LS 990 design range antique brass | 1 | |
U | Cable outlet (with strain relief) LS range antique brass | 1 | |
U | 1-gang frame LS 990 design range antique brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
V | Cable outlet (with strain relief) LS range antique brass | 1 | |
V | 1-gang frame LS 990 design range antique brass | 1 | |
1 x 1 W | KNX universal push-button module, 3-gang, F50, secure | 2 | |
1 x 1 W | Cover kit 3-gang LS range antique brass | 2 | |
1 x 1 W | SCHUKO® socket with USB charger CA LS range antique brass | 2 | |
1 x 1 W | KNX universal push-button module, 4-gang, F50, secure | 2 | |
1 x 1 W | Cover kit 4-gang LS range antique brass | 2 | |
1 x 1 W | 3-gang frame LS 990 design range antique brass | 2 | |
W2 | SCHUKO® socket LS range antique brass | 1 | |
W2 | 1-gang frame LS 990 design range antique brass | 1 | |
X2 | SCHUKO® socket LS range antique brass | 2 | |
X2 | Modular jack socket, cat. 3 | 1 | |
X2 | Cover IAE/UAE LS range antique brass | 1 | |
X2 | 3-gang frame LS 990 design range antique brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
A | Hotel push-button corridor unit 1-pole, 1-way NO contact 230V | 1 | |
A | Hotel rocker (glass), corridor unit LS range black | 1 | |
A | 1-gang frame LS 990 design range antique brass | 1 | |
B | LED pilot light | 1 | |
B | Glass cover LS range black | Labelling tool | 1 |
B | 1-gang frame LS 990 design range antique brass | 1 | |
C | Energy saving unit | 1 | |
C | Key car holder RFID LS range antique brass | 1 | |
C | KNX push-button universal 2-gang | 1 | |
C | Hotel rocker room unit LS range antique brass | On request | 1 |
C | 2-gang frame LS 990 design range antique brass | 1 | |
D | KNX push-button standard 1-gang | 1 | |
D | Rocker with lens LS range antique brass | 1 | |
D | 1-gang frame LS 990 design range antique brass | 1 | |
E | Triple-tone door signal | On request | 1 |
E | 1-gang frame LS 990 design range antique brass | 1 | |
O | LED floor pilot light LS range antique brass | 1 | |
O | 1-gang frame LS 990 design range antique brass | 1 | |
Y | KNX fan coil room thermostat LS range black | 1 | |
Y | 1-gang frame LS 990 design range antique brass | 1 | |
Z | KNX universal push-button module, 3-gang, F50, secure | 1 | |
Z | Cover kit 3-gang LS range antique brass | 1 | |
Z | 1-gang frame LS 990 design range antique brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
F | KNX push-button standard 1-gang | 1 | |
F | Rocker with lens LS range antique brass | 1 | |
F | 1-gang frame LS 990 design range antique brass | 1 | |
Distribution board | Power supply for rail mounting 24V DC | 1 | |
Distribution board | KNX power supply with IP interface | 1 | |
Distribution board | KNX switch / blinds actuator 24/12-gang | 1 | |
Distribution board | KNX LED Universal dimming actuator, 2-gang | 1 | |
Distribution board | KNX 6-gang binary input | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
G | KNX universal push-button module, 2-gang, F50, secure | 1 | |
G | Cover kit 2-gang LS range antique brass | 1 | |
G | 1-gang frame LS 990 design range antique brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
H | Cable outlet with strain relief LS range | 1 | |
H | 1-gang frame LS 990 design range antique brass | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
K | KNX push-button standard 1-gang | 1 | |
K | Rocker with lens LS range antique brass | 1 | |
K | 1-gang frame LS 990 design range antique brass | 1 | |
I | Smart Radio DAB+ Bluetooth mono LS range black | 1 | |
I | 2-gang frame LS 990 design range antique brass | 1 | |
J | Electric shaver socket insert | 1 | |
J | Electric shaver socket centre plate LS range antique brass horizontal | On request | 1 |
J | 2-gang frame LS 990 design range antique brass | 1 | |
L | LED floor pilot light LS range antique brass | 1 | |
L | 1-gang frame LS 990 design range antique brass | 1 | |
M | LED floor pilot light LS range antique brass | 1 | |
M | 1-gang frame LS 990 design range antique brass | 1 |
