Mid-scale

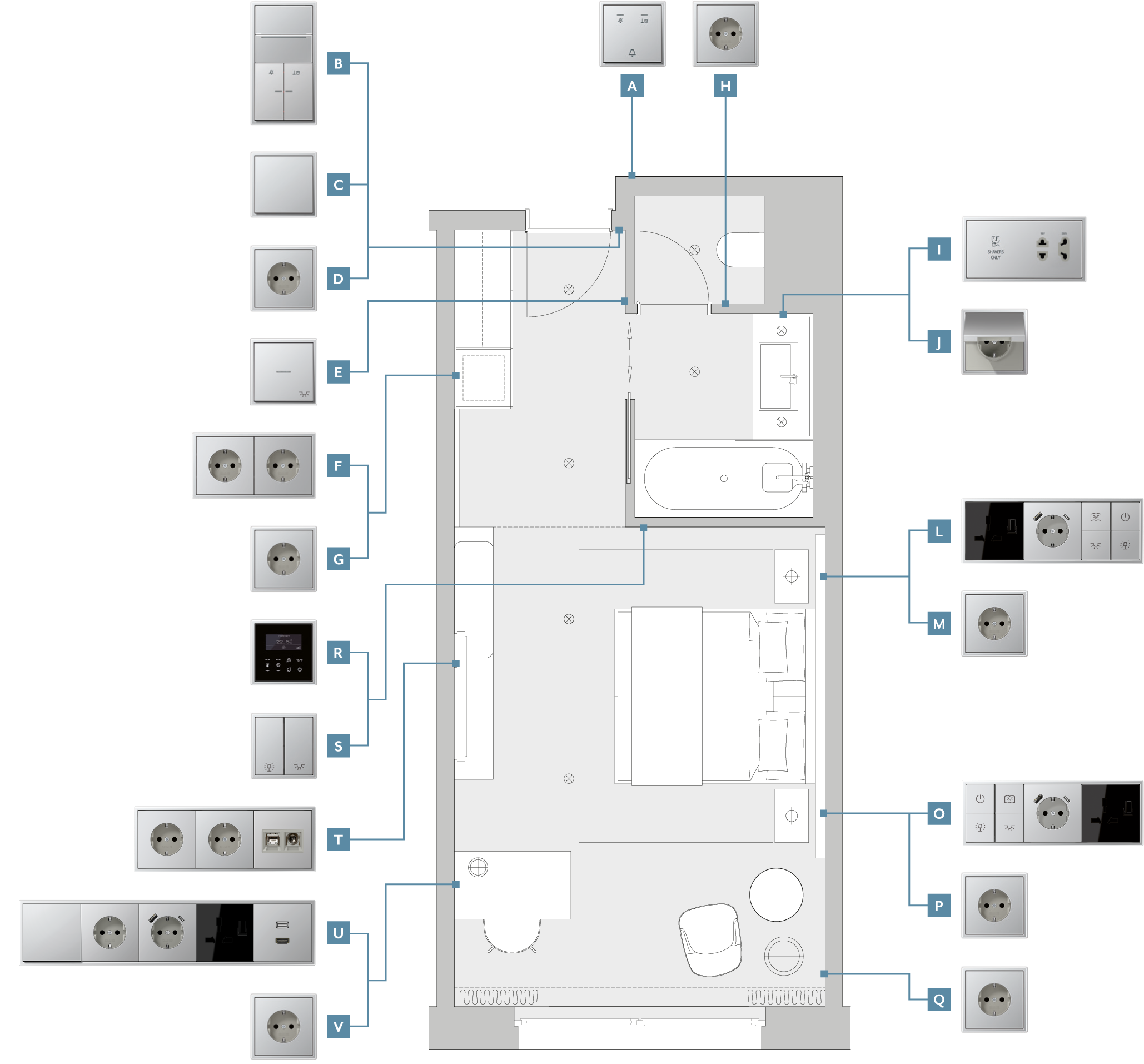

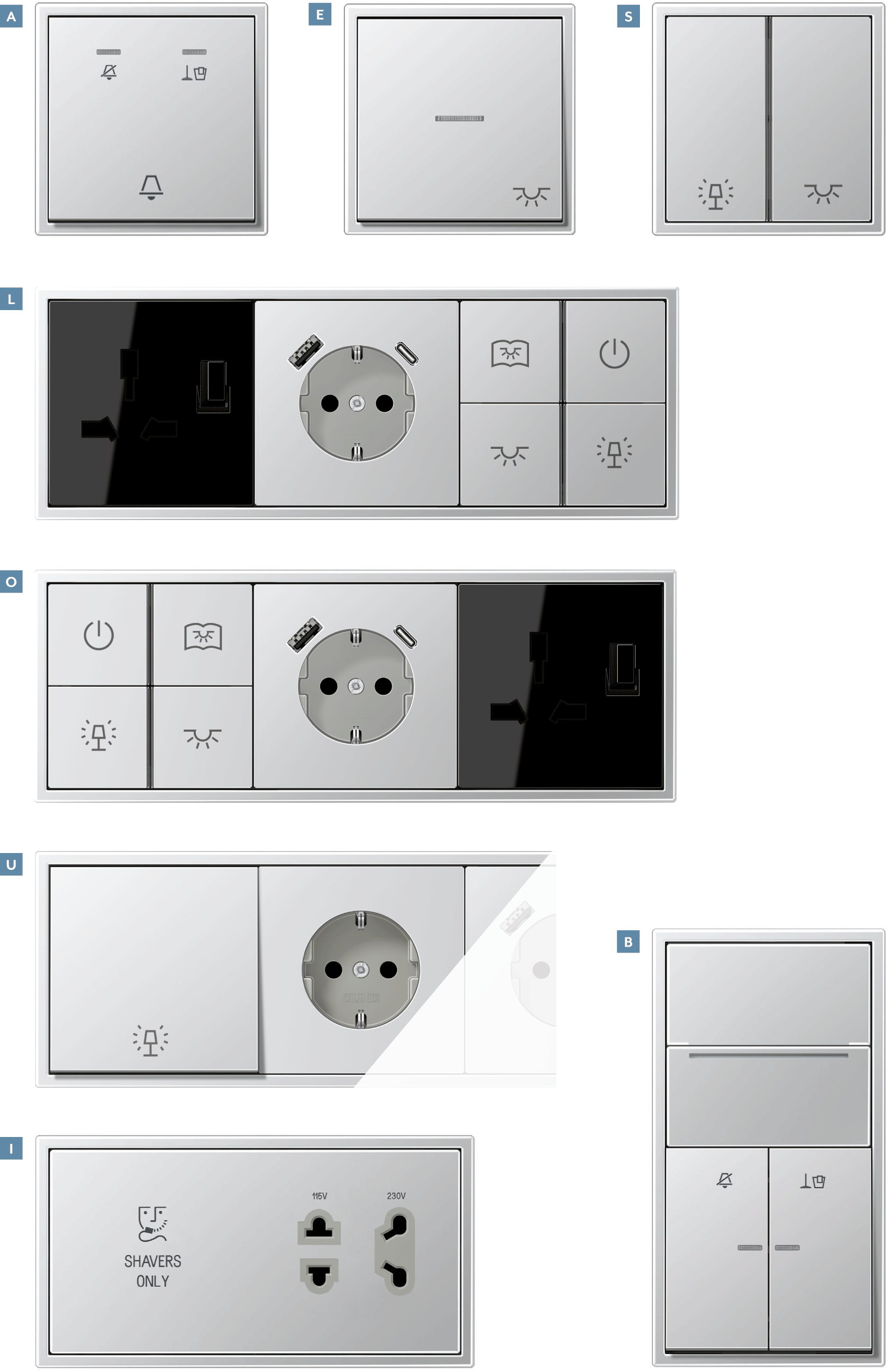

To provide a more detailed representation of the graphics, individual devices are shown magnified.
No. | Components | See also | Quantity |
|---|---|---|---|
E | 1-pole, 1-way NO contact push-button with separate signal contact | 1 | |
E | Rocker with symbol "Light" LS range aluminium | 1 | |
E | 1-gang frame LS 990 design range aluminium | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
H | SCHUKO® socket LS range aluminium | 1 | |
H | 1-gang frame LS 990 design range aluminium | 1 | |
I | Electric shaver socket insert | 1 | |
I | Electric shaver socket centre plate LS range aluminium | 1 | |
I | 2-gang frame LS 990 design range aluminium | 1 | |
J | SCHUKO® socket with hinged lid, aluminium | 1 | |
Sealing gasket | 1 | ||
J | 1-gang frame LS 990 design range aluminium | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
A | Hotel centre plate LED 230V corridor unit LS range aluminium | 1 | |
A | 1-gang frame LS 990 design range aluminium | 1 | |
B | Energy saving unit | 1 | |
B | Key card holder RFID LS range aluminium | 1 | |
B | Hotel switch, room unit | 1 | |
B | Hotel rocker, room unit LS range aluminium | 1 | |
B | 2-gang frame LS 990 design range aluminium | 1 | |
C | Push-button 1-pole, 1-way NO contact | 1 | |
C | Rocker LS range aluminium | 1 | |
C | 1-gang frame LS 990 design range aluminium | 1 | |
D | SCHUKO® socket LS range aluminium | 1 | |
D | 1-gang frame LS 990 design range aluminium | 1 | |
R | Fan coil room thermostat 4-pipe LS range black | 1 | |
R | 1-gang frame LS 990 design range aluminium | 1 | |
S | Push-button module 24V AC/DC 2-gang | 1 | |
S | Cover kit 2-gang LS range aluminium | 1 | |
S | 1-gang frame LS 990 design range aluminium | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
L / O | Push-button module 24V AC/DC 4-gang | 2 | |
L / O | Cover kit 4-gang LS range aluminium | 2 | |
L / O | SCHUKO® socket with USB charger CA LS range aluminium | 2 | |
L / O | Socket type G + I LS range black | 2 | |
L / O | 3-gang frame LS 990 design range aluminium | 2 | |
M | SCHUKO® socket LS range aluminium | 1 | |
M | 1-gang frame LS 990 design range aluminium | 1 | |
P | SCHUKO® socket LS range aluminium | 1 | |
P | 1-gang frame LS 990 design range aluminium | 1 | |
Q | SCHUKO® socket LS range aluminium | 1 | |
Q | 1-gang frame LS 990 design range aluminium | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
T | SCHUKO® socket LS range aluminium | 2 | |
T | UMA-CAT6 centre plate | 1 | |
T | 3-gang frame LS 990 design range aluminium | 1 | |
U | Push-button 1-pole, 1-way NO contact | 1 | |
U | Rocker LS range aluminium | 1 | |
U | SCHUKO® socket LS range aluminium | 1 | |
U | SCHUKO® socket with USB charger CA LS range aluminium | 1 | |
U | Socket type G + I LS range black | 1 | |
U | 5-gang frame LS 990 design range aluminium | 1 | |
V | SCHUKO® socket LS range aluminium | 1 | |
V | 1-gang frame LS 990 design range aluminium | 1 |
No. | Components | See also | Quantity |
|---|---|---|---|
F | SCHUKO® socket LS range aluminium | 2 | |
F | 2-gang frame LS 990 design range aluminium | 1 | |
G | SCHUKO® socket LS range aluminium | 1 | |
G | 1-gang frame LS 990 design range aluminium | 1 |
