Connect loudspeaker to KNX rotary sensor

The following steps help you with the set-up for controlling Sonos with the KNX rotary sensor.

  1. Create a function for the KNX rotary sensor. Select the Kitchen area, assign a name e.g. KNX -> Sonos kitchen (rotary sensor).

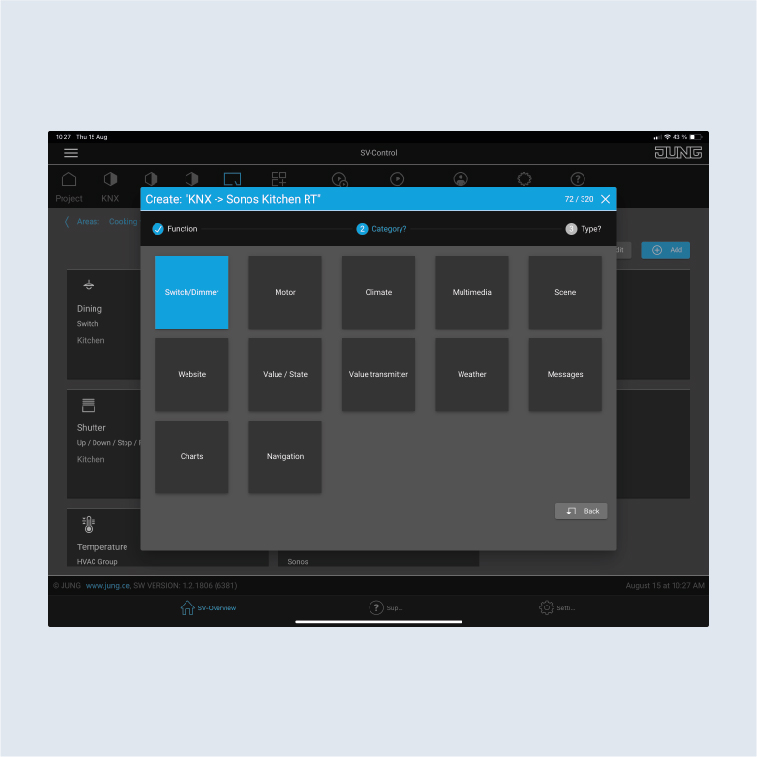

  2. Then select the function type Switch/Dimmer.

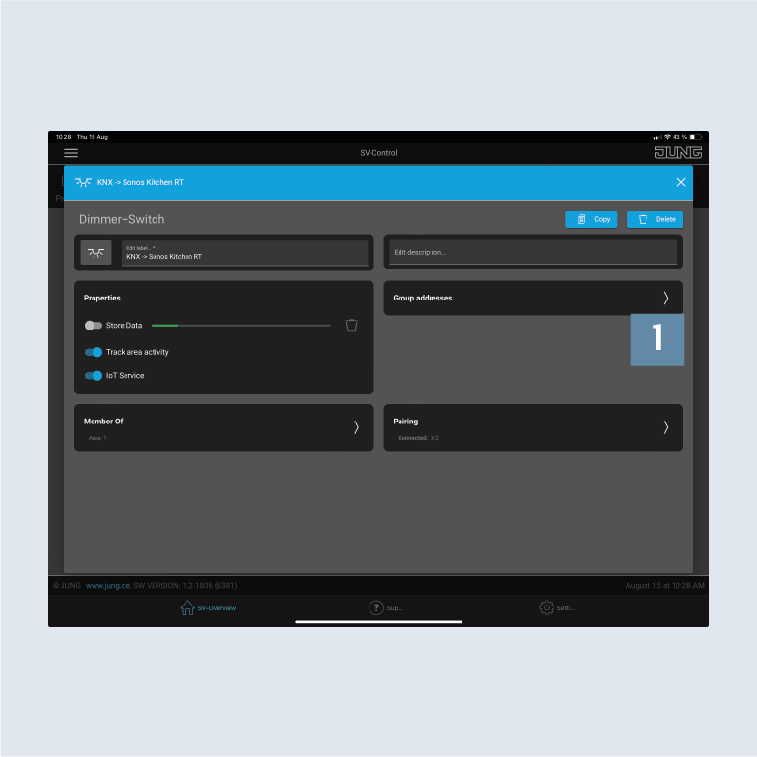

  1. Under Settings, enter the previously created KNX group addresses for the function Switch/Dimmer 1.
  • Play/Pause (1-bit) > switch > push button
  • Volume (1 byte) > value > rotary knob

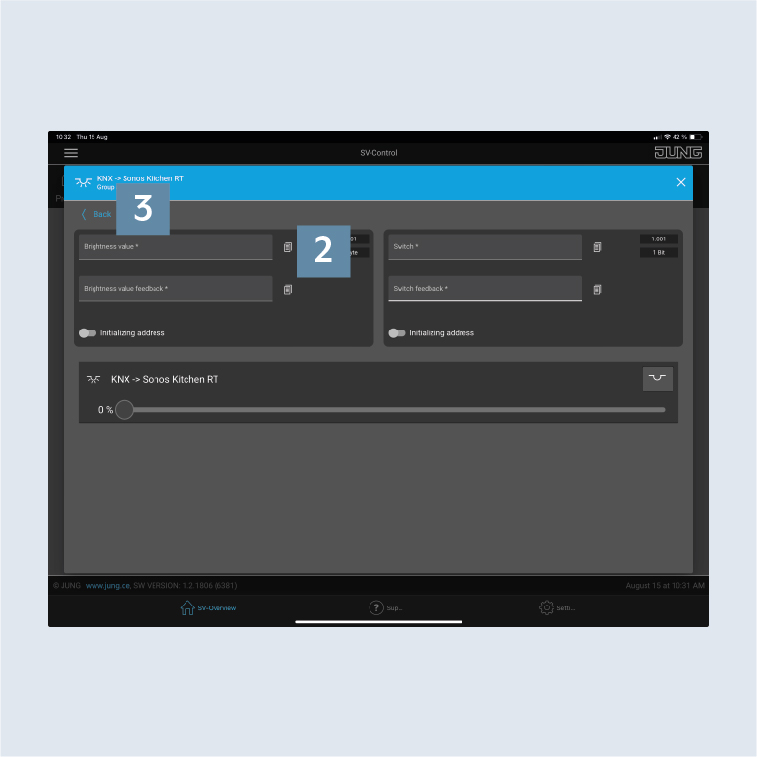

The list selection 2 on the right next to the input fields shows you all suitable group addresses of the installation.

  1. Click on Back3 and then on Pairing.

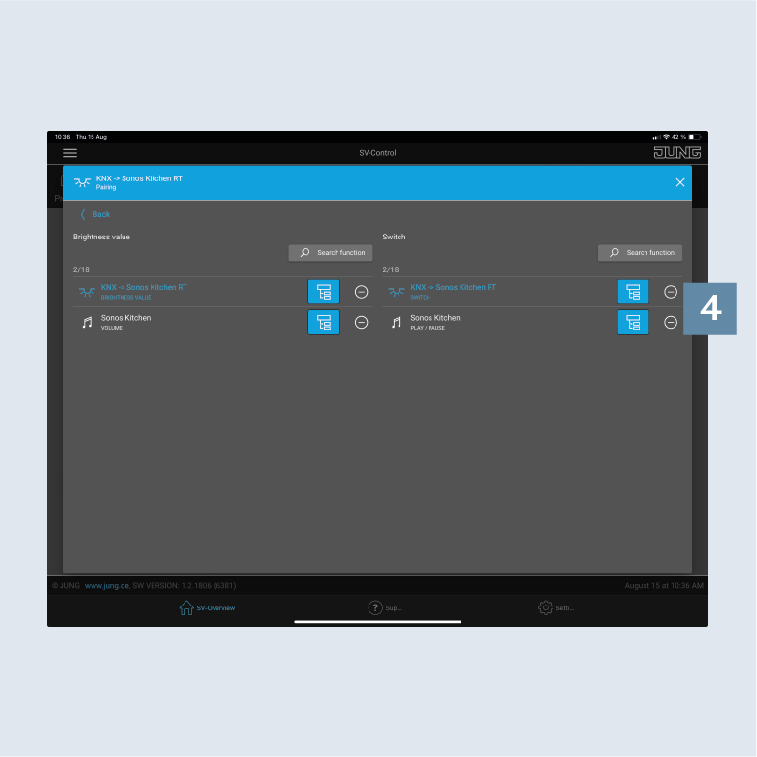

  1. Now connect (pair) the KNX group addresses to the Sonos loudspeaker or the Sonos group (Kitchen) 4.
  2. Ensure that the Master button is activated for all Sonos loudspeakers in this group. A Master button is always shown in light-blue.
