KNX – general configuration

The individual steps for connecting your KNX system to the Smart Visu Server are explained below.

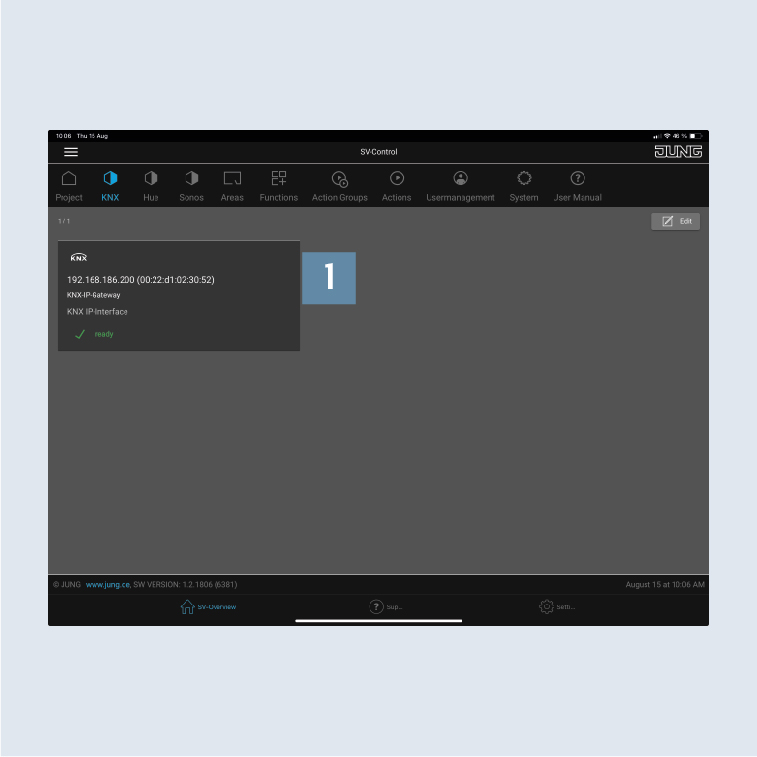

1. Select the IP address of your KNX IP interface on the KNX tab under KNX-IP-Gateway 1.
   You can recognise a successful connection by the green tick.

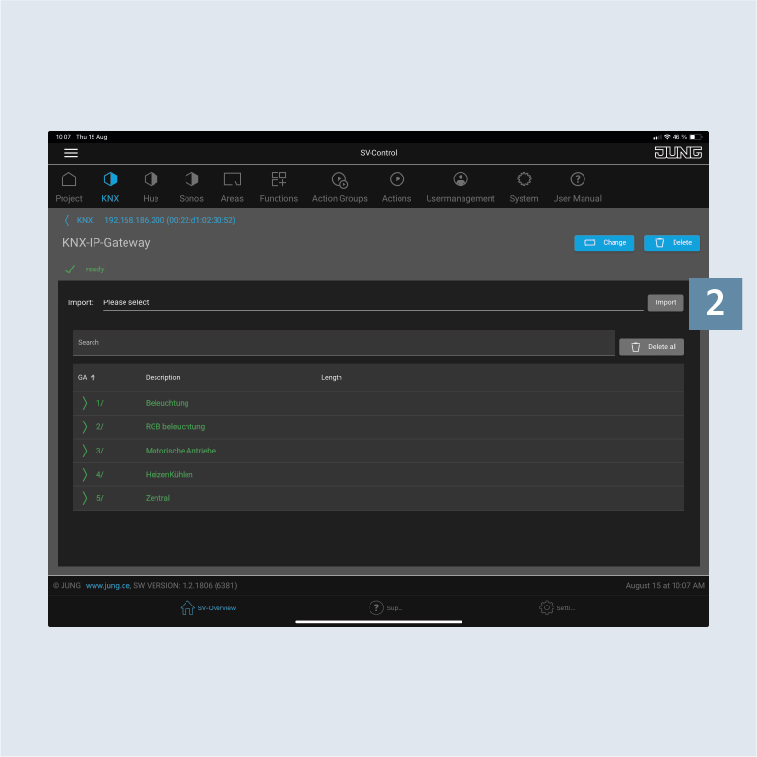

2. Import the KNX group addresses of your project using the Import button 2.
   Newly added group addresses are marked in green.
