Commissioning SV-Server

Integrate the Smart Visu (SV) Server in your home network.

• Call the SV-Server with the web browser of your device (PC, laptop, tablet).
  To do so, enter the address http://sv-server.local or the IP address of the SV-Server allocated by the router in the web browser.
• If the SV-Server is protected by a password, enter this.

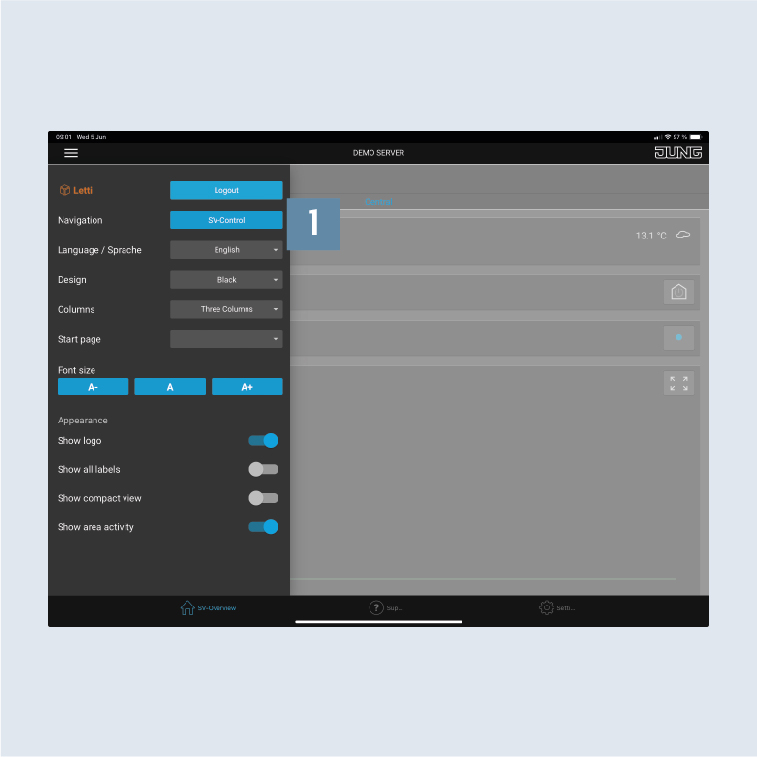

1. Select the SV-Control 1button.

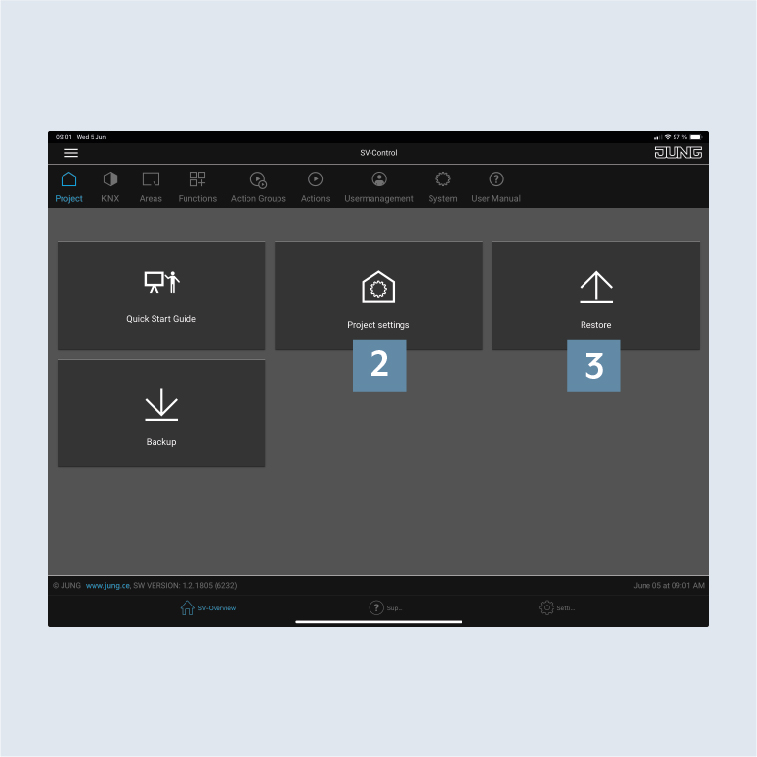

2. Create a new project with Project Settings 2 or import an existing one with Restore 3 and navigate to the KNX tab.

Set up areas and functions

After you have established the connection to the KNX bus, you now create areas and functions in the SV-Server.

Note
The following is based on a configured system with functions and rooms already created.

---

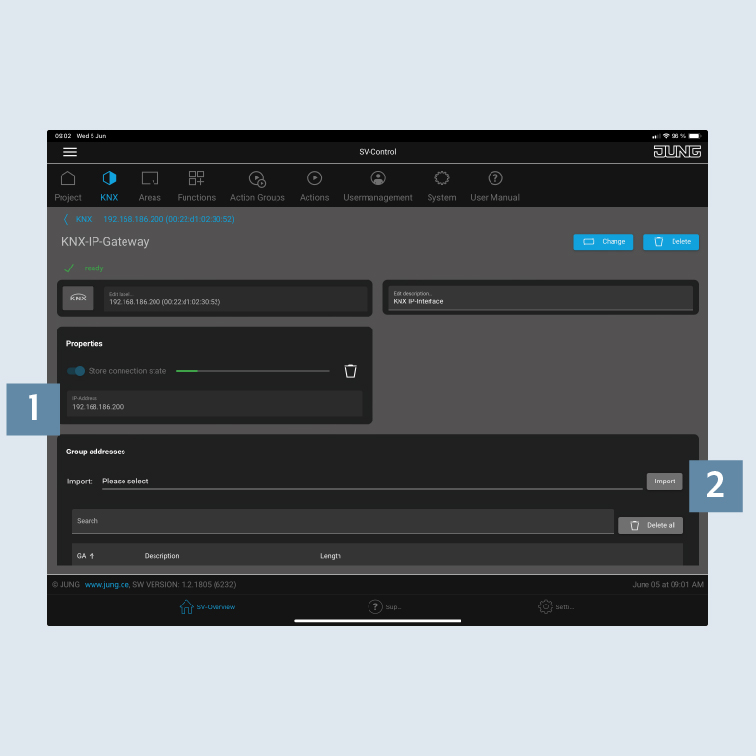

3. Add a new interface on the KNX tab and enter the IP address in the IP address field 1.
4. Then import the required group addresses 2.

---

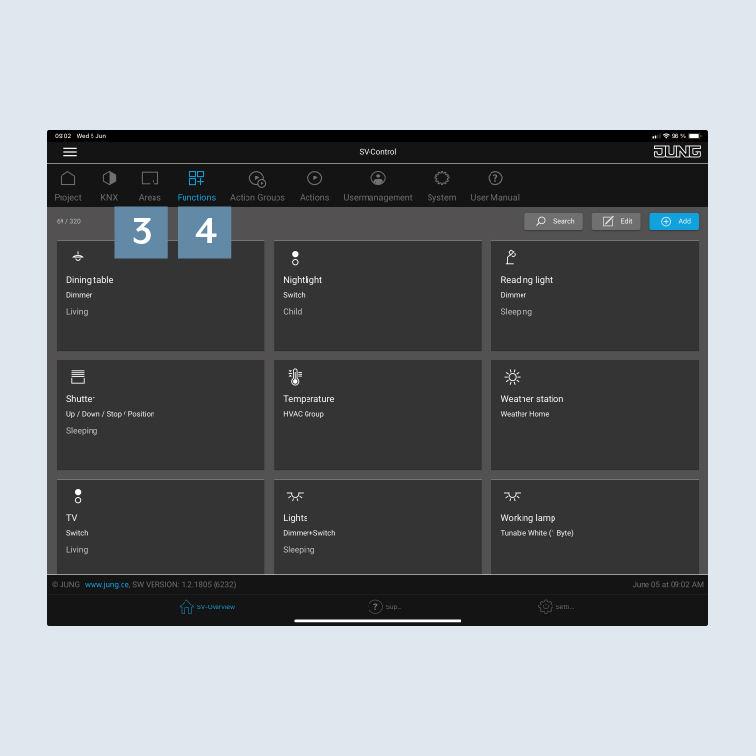

5. You can create rooms (areas) 3 and functions 4 on the Areas & Functions tab.

---

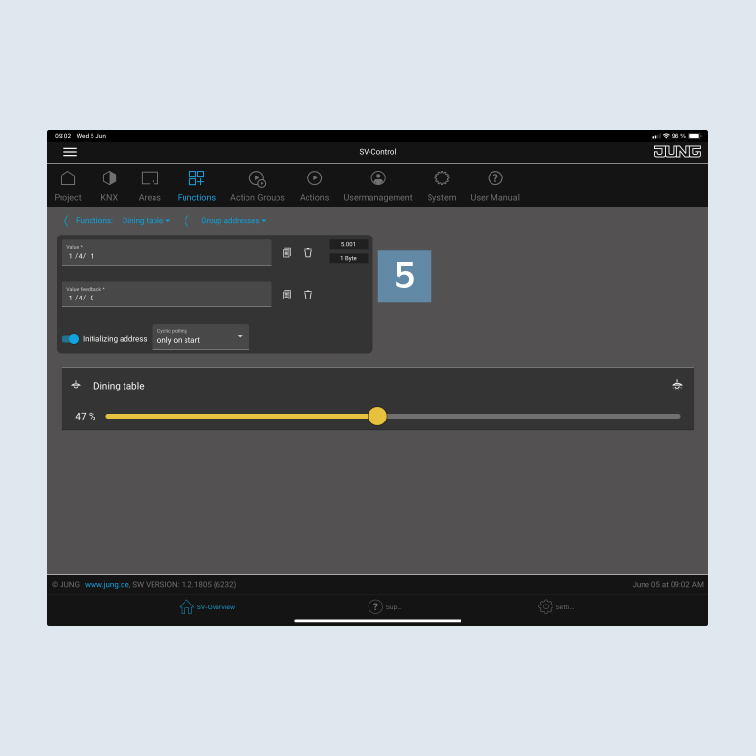

6. Create a function and allocate the appropriate group addresses 5 to the function.

---

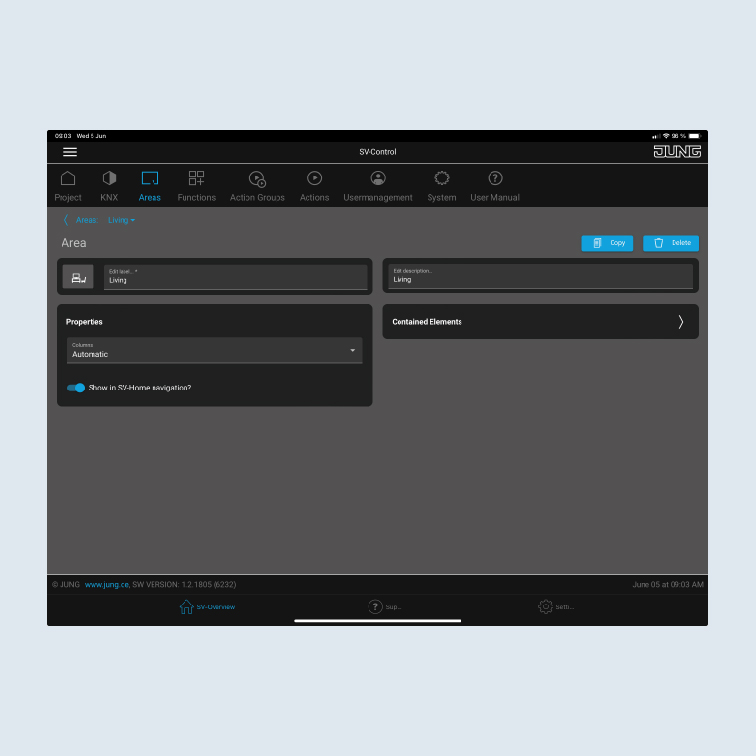

7. Create an area (room) and allocate the function created to the area.

---
