Application 1: Temperature comparison of different rooms

• For this application, you need KNX devices with a temperature sensor (e.g. KNX F10 push-button, KNX F40 push-button sensor, KNX F50 push-button sensor or KNX presence detector mini Universal).

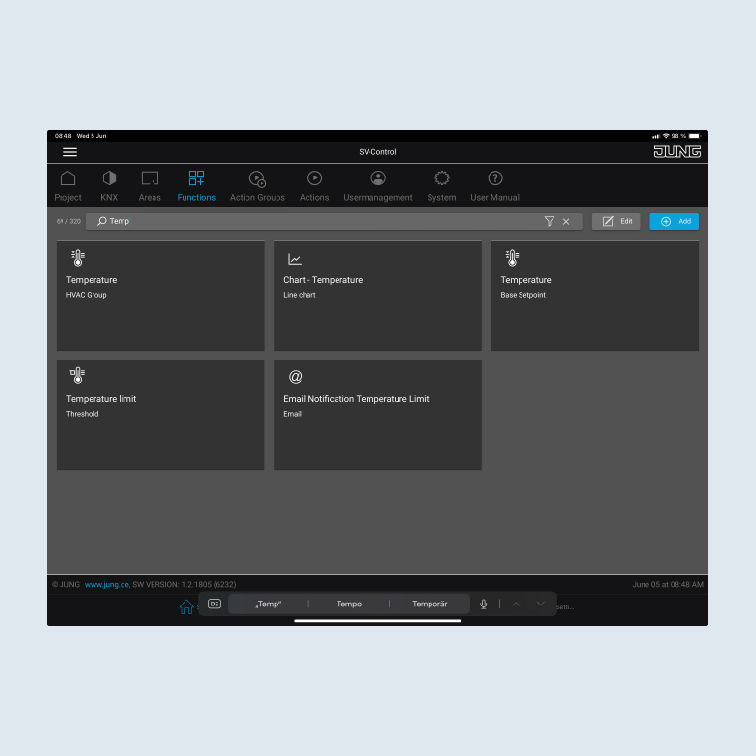

• Navigate in SV-Control to Functions to activate data storage.

1. On the Functions tab select the Function whose data you want to store.

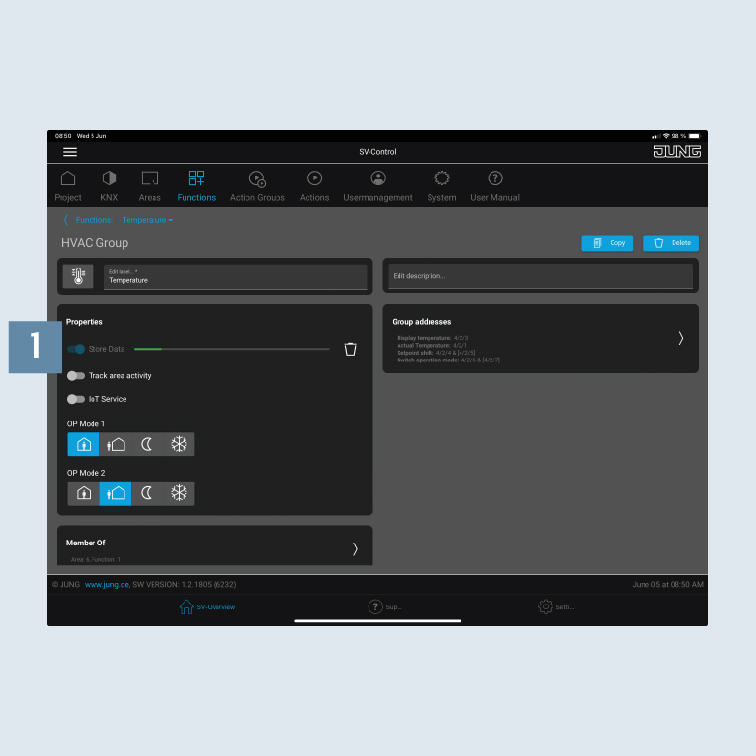

2. Move the Store Data 1 slider to "On" (the slider is blue when it is set to "On").

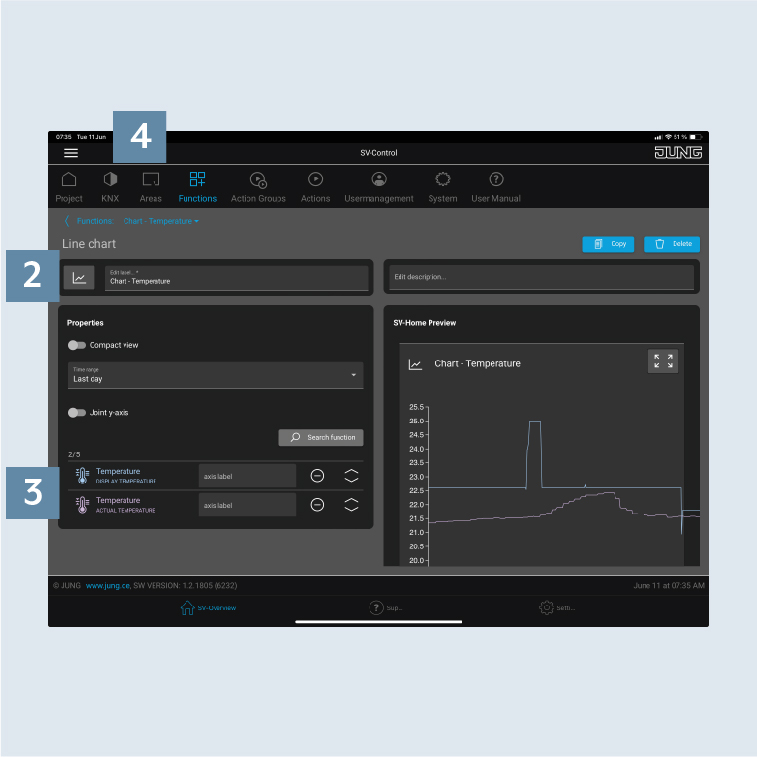

3. Create a new function of type line diagram 2 and add the previously selected functions.
4. Change the properties of the chart display (e.g. time period displayed) 3 according to your requirements.
5. Add the temperature functions recorded to the chart.
6. Allocate the function either to an existing area 4 or create a new area.

7. Call the SV Home user interface.

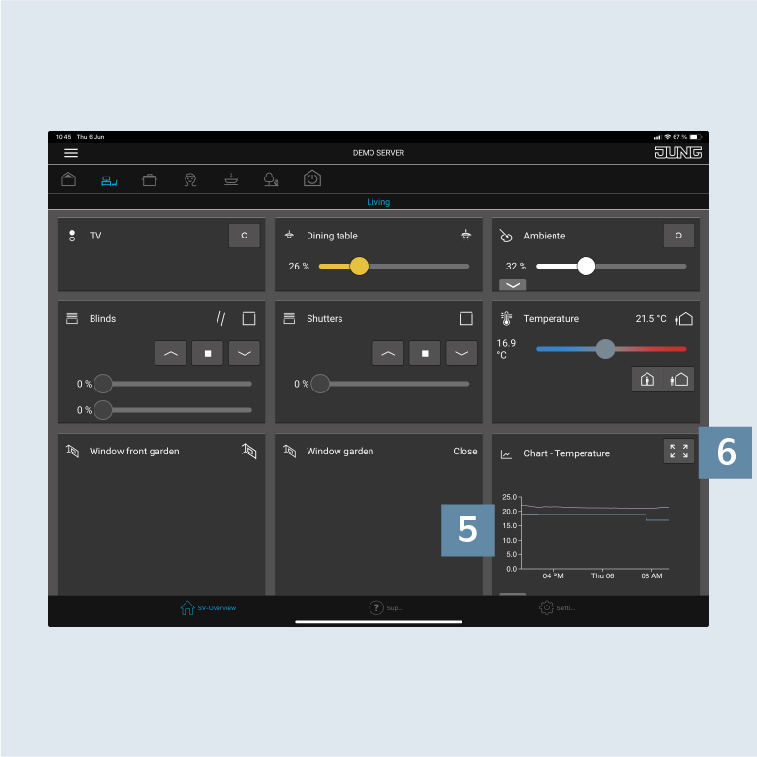

   As soon as the data are saved, they are stored on the Smart Visu Server and can be displayed in a chart 5.
8. You can get more detailed information using the full-screen mode 6.
