Installation and settings

Connecting and fitting the system insert

Note the following for the installation:

JUNG HOME covers can only be operated with a terminal for N conductor connected to the system insert.
Do not attach or replace the attachment under voltage, otherwise a malfunction can occur.

Proceed as follows for mounting:

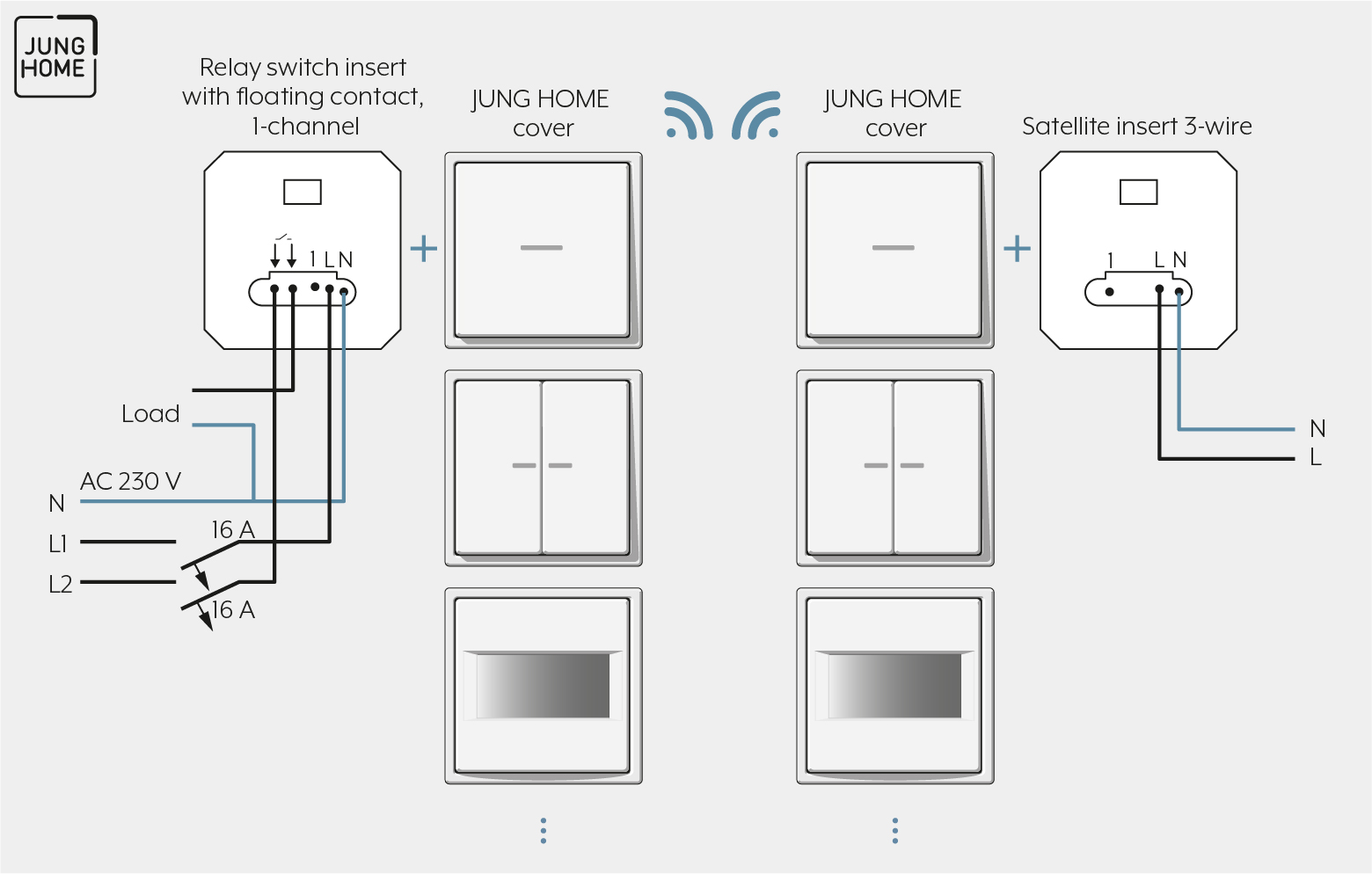

Connect the system insert according to the connection diagram. Be aware in the process of clampable cable cross-sections.
Pair the circuit breakers or label them with a warning message such that disconnection is ensured when multiple circuit breakers supply dangerous voltages to a device or load.
Mount the system insert in a wall box. Note that the connection terminals must be positioned at the bottom.
Attach the frame and cover.
Switch on the mains power.

Clampable conductor cross-sections
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 2.5 mm²
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 2.5 mm²
	1 x 0.5 ... 4 mm² 2 x 0.5 ... 1.5 mm²

Clampable conductor cross-sections

1 x 0.5 ... 4 mm²

2 x 0.5 ... 2.5 mm²

1 x 0.5 ... 4 mm²

2 x 0.5 ... 2.5 mm²

1 x 0.5 ... 4 mm²

2 x 0.5 ... 1.5 mm²
